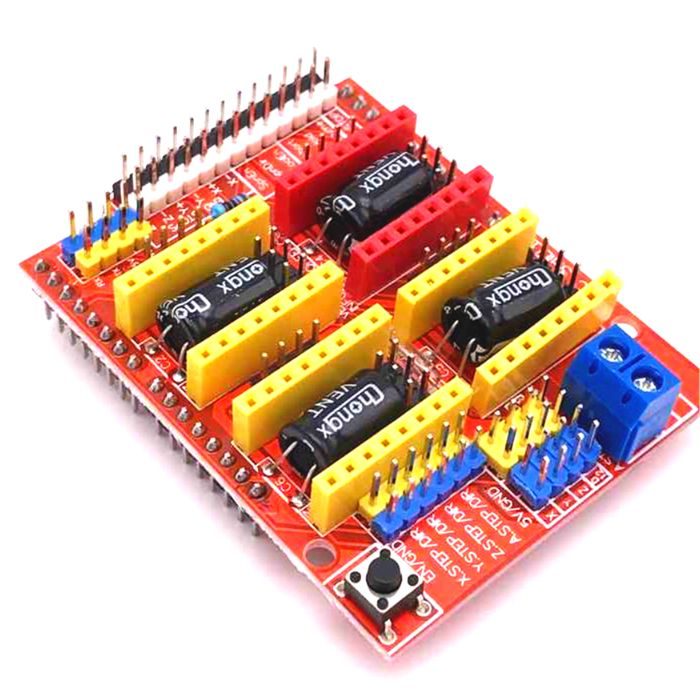

CNC SHIELD

The Arduino CNC Shield V3.10 plugs directly onto an Arduino UNO and, with GRBL firmware installed, turns it into a full CNC controller. Supports up to 4 axes (X, Y, Z, A) with removable Pololu-compatible stepper drivers (A4988, DRV8825 — not included). Micro-stepping configurable via jumpers. Compatible with engraving machines, 3D printers, and CNC routers.

Note: Stepper drivers not included. Requires soldering for some connections.

Features:

1. 4-axis support (X, Y, Z, A)
2. Compatible with A4988, DRV8825, and other Pololu-format drivers
3. Micro-stepping configurable via jumpers (up to 1/32 with DRV8825)
4. 2 end stops per axis (6 total)
5. PWM spindle and direction pins
6. Coolant enable pin
7. GRBL 0.9 compatible
8. Operating Voltage: 12–36V DC
9. Stepper motors connect via 4-pin Molex connectors or solder pads
