0.9V-5V TO 5V 600MAMP USB OUTPUT
Rs. 54.40

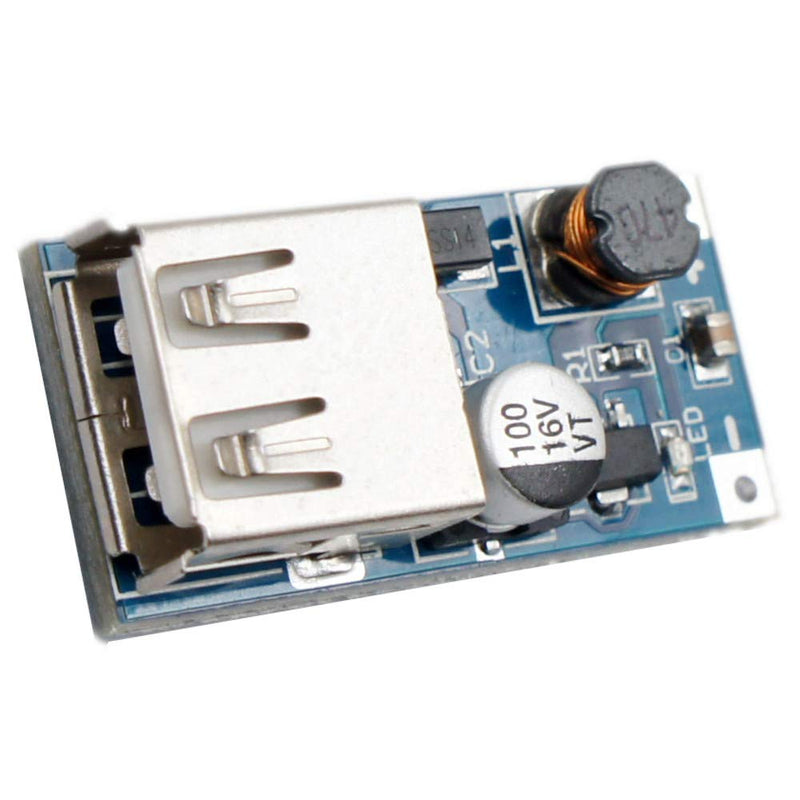

The DC-DC Boost Module steps up a low input voltage (0.9V–5V) to a regulated 5V USB output at up to 600mA. Ideal for portable charger projects powered by AA batteries or single-cell LiPo. Works with indicator light and features a USB-A female output for wide compatibility.
Features:
- Input as low as 0.9V — maximises battery usage
- Single AA battery: up to 200–300mA output
- Two AA batteries: up to 500–600mA output
- Regulated 5V USB output
- Onboard indicator LED
- USB-A female connector
Applications:
- Portable USB charger from AA batteries
- USB-powered device supply from low-voltage sources
- Mobile phone / MP3 / MP4 charging on the go
| Model: | Boost Converter Module |
|---|---|
| Input Voltage (V): | 0.9 to 5 |
| Output Voltage (V): | 5 |
| Output Current (mA): | 500 to 600 |
| Switching Frequency (kHz): | 500 |
| Load Regulation: | ±1% |
| Voltage Regulation: | ±0.5% |
| Operating Temperature (°C): | -40 to 85 |
