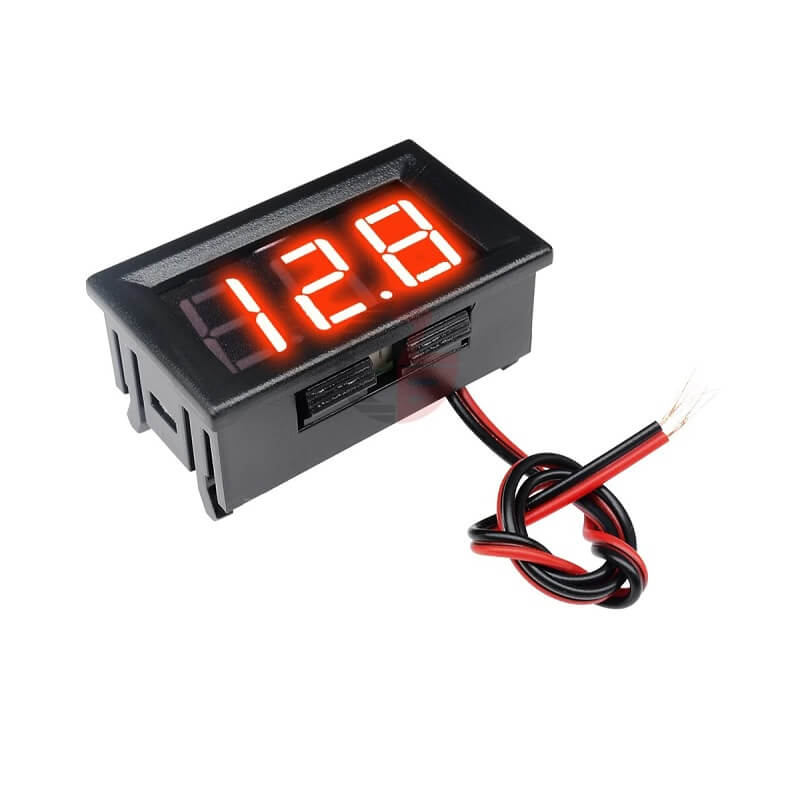

0.56" Digital Voltmeter Panel Meter
Rs. 59.00
Skip to product information
0.56" Digital Voltmeter Panel Meter
Rs. 59.00
Need a larger quantity? Get a bulk quote.
A compact 0.56-inch LED digital voltmeter panel meter for measuring DC voltage. It features a bright 3-digit 7-segment display and can be directly embedded into enclosures or mounted on panels for real-time voltage monitoring.
Specifications
- Display: 0.56" 3-digit 7-segment LED (Red)
- Measurement Range: 0 – 99.9V DC (2-wire) or 3.2 – 30V DC (3-wire)
- Input Voltage (Power): 3.2V – 30V DC (from measured source or separate)
- Accuracy: ±1%
- Refresh Rate: ~500ms
- Wire Configuration: 2-wire or 3-wire (model dependent)
- Panel Cutout: 45 × 26 mm
- Dimensions: 48 × 29 × 20 mm
- Weight: ~15 g
Applications
Battery monitors, power supply panels, solar charge displays, Arduino power monitoring, DIY electronics enclosures.
