FLAME SENSOR
Rs. 0.00
Skip to product information

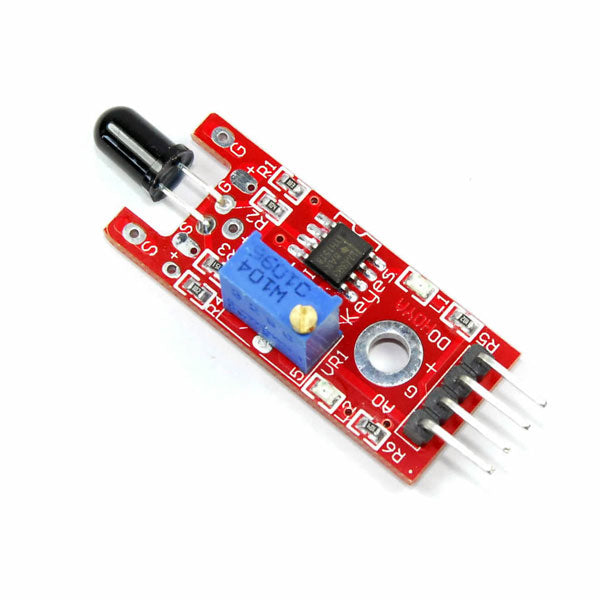

FLAME SENSOR
Rs. 0.00
The Flame Sensor module detects flames and infrared light sources in the 760nm–1100nm wavelength range. Can detect a lighter flame from up to 80cm away. 60° detection angle with adjustable sensitivity via onboard potentiometer. Digital output (D0) goes HIGH when flame is detected, with indicator LED. Directly compatible with 3.3V and 5V microcontrollers.
Features:
- Detects 760–1100nm IR wavelength (flame spectrum)
- Detection range: up to 80cm (lighter flame)
- Detection angle: 60°
- Adjustable sensitivity via onboard potentiometer
- Digital output (HIGH when flame detected) with LED indicator
- Operating Voltage: 3.3V–5V
- 3mm mounting holes
Applications:
- Fire detection and alarm systems
- Fire-fighting robots
- Industrial gas turbine monitoring
- Gas-powered cooking device safety
