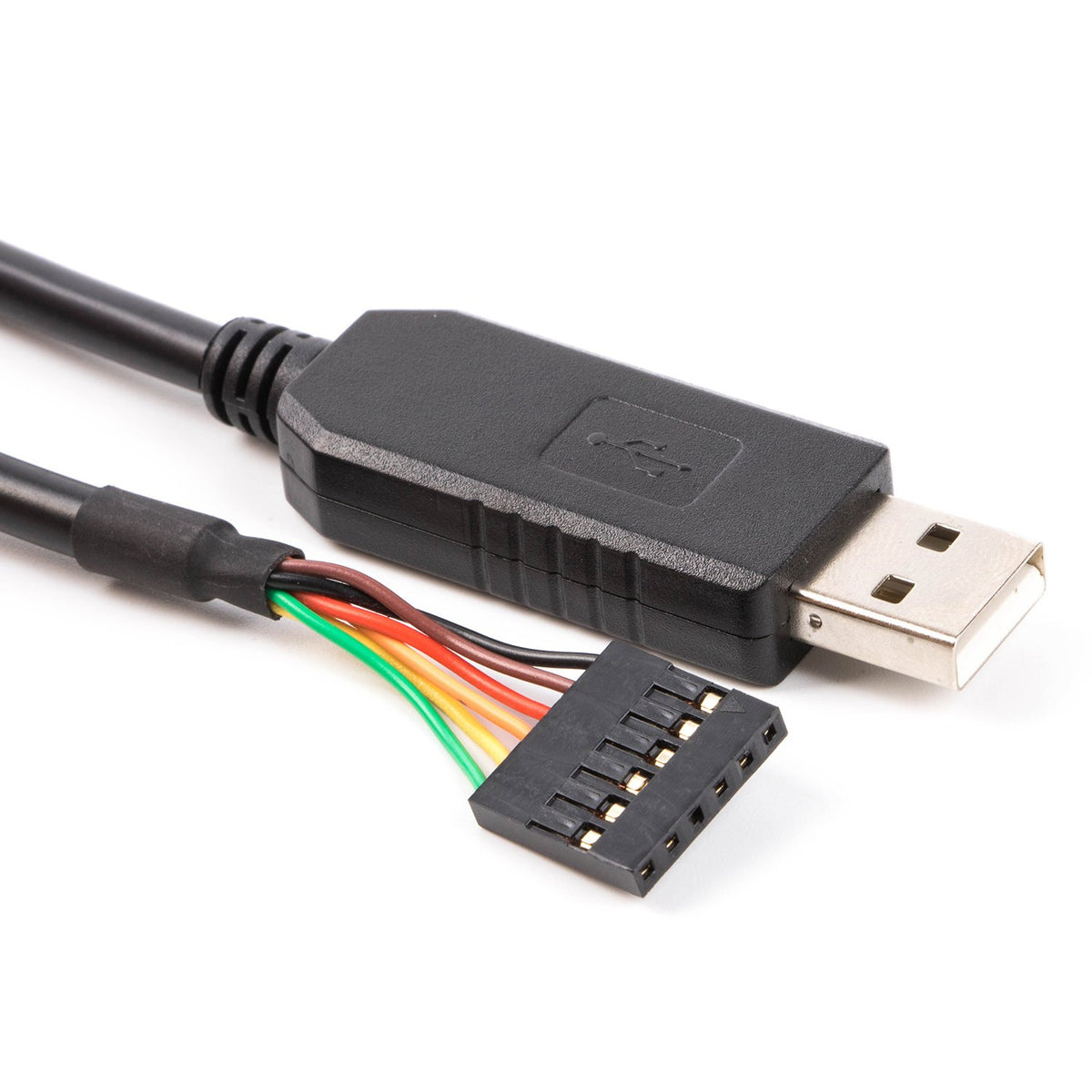

FT232 USB TO TTL WIRE

The FT232RL USB to TTL Serial Adapter is based on the genuine FTDI FT232RL IC. Converts USB to UART TTL for programming Arduino Pro Mini, LilyPad, and other 6-pin FTDI-compatible boards. Features the DTR pin (not RTS) for auto-reset during sketch upload — no manual reset button needed. Selectable 3.3V or 5V IO and power via back jumper (default: 5V). TX/RX LEDs for visual traffic monitoring. 500mA self-resetting USB fuse for protection.

Wiring (FTDI → Arduino Pro Mini):

• GND → GND
• VCC → VCC
• TX → RX
• RX → TX
• DTR → GRN (auto-reset)

Features:

• Genuine FTDI FT232RL chip
• DTR pin for auto-reset (Arduino compatible)
• Selectable 3.3V / 5V IO and power output
• TX/RX indicator LEDs
• 500mA self-resetting USB fuse
• Mini USB connector
• Compatible with Arduino Pro Mini, LilyPad, and FTDI 6-pin boards
