150W BOOST MODULE
Rs. 176.80
Skip to product information
150W BOOST MODULE
Rs. 176.80

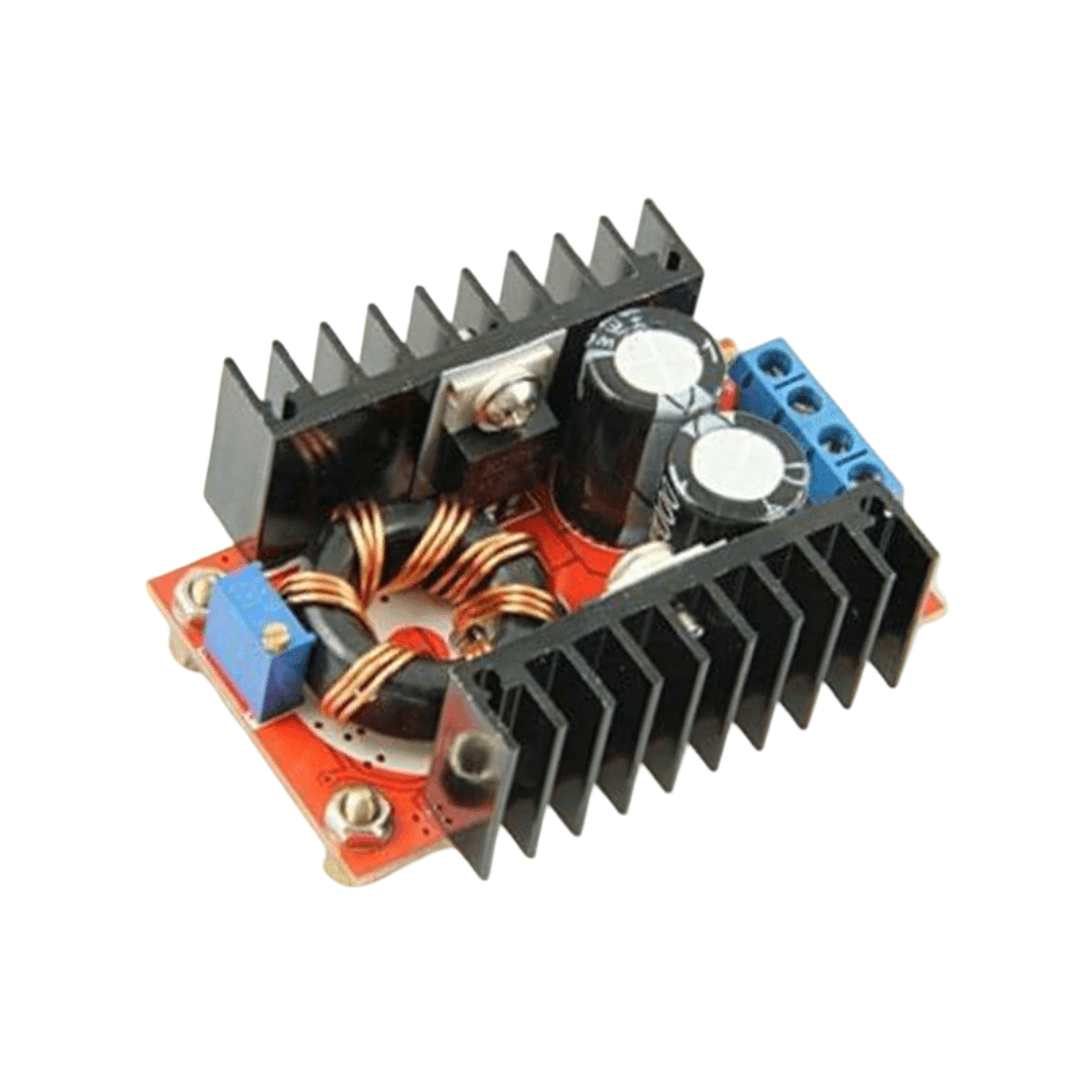

The 150W DC-DC Boost Converter steps up input voltage (10–32V) to an adjustable output (12–35V) at up to 6A and 150W. Features a large toroidal inductor, dual heatsinks, and a multi-turn potentiometer for precise voltage adjustment. Ideal for automotive 12V applications requiring higher voltages.
Note: No reverse polarity or short-circuit protection. Use a series diode on the input and set output voltage with a voltmeter before connecting your load.
Features:
- Non-isolated step-up (boost) converter
- Continuously adjustable output via multi-turn potentiometer
- Onboard LED power indicator
- Dual heatsinks for thermal management
- Screw terminal output (OUT+ / OUT−)
Applications:
- Laptop power supply from 12V car battery (boost to 19V)
- Adjustable vehicle power supply (14–35V)
- Boost charger (12V to 18V/24V)
- General-purpose adjustable DC power supply
| Input Voltage (V): | 10 to 32 |
|---|---|
| Output Voltage (V): | 12 to 35 (adjustable) |
| Max Output Current (A): | 6 |
| Max Input Current (A): | 10 |
| Output Power (W): | 150 |
| Conversion Efficiency (%): | 94 |
| Operating Temperature (°C): | -40 to 90 |
