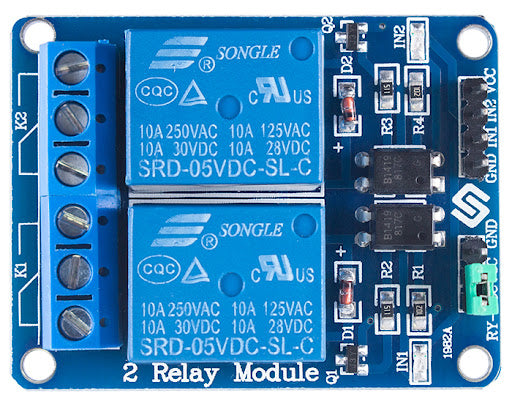

2CH 5V RELAY MODULE

The 2-Channel 5V Relay Module allows you to independently control two high-voltage/high-current loads from a microcontroller. Each channel uses an 8550 transistor driver for strong relay drive capability, with individual status LEDs and standard COM/NO/NC terminals. Compatible with Arduino, AVR, PIC, ARM, MSP430, and any TTL-logic controller.

Features:

• 2 independent relay channels
• Trigger voltage: 5V DC
• Trigger current: 15–20mA per channel
• Switching capacity: 10A @ 250V AC / 10A @ 30V DC
• 8550 transistor driver for strong drive strength
• Power indicator LED (green) + 2 relay status LEDs (red)
• Each channel: 1 x COM, 1 x NO, 1 x NC terminal
• VCC/RY-VCC jumper for separate relay power supply option
• Compatible with Arduino, AVR, PIC, ARM, MSP430, TTL logic
