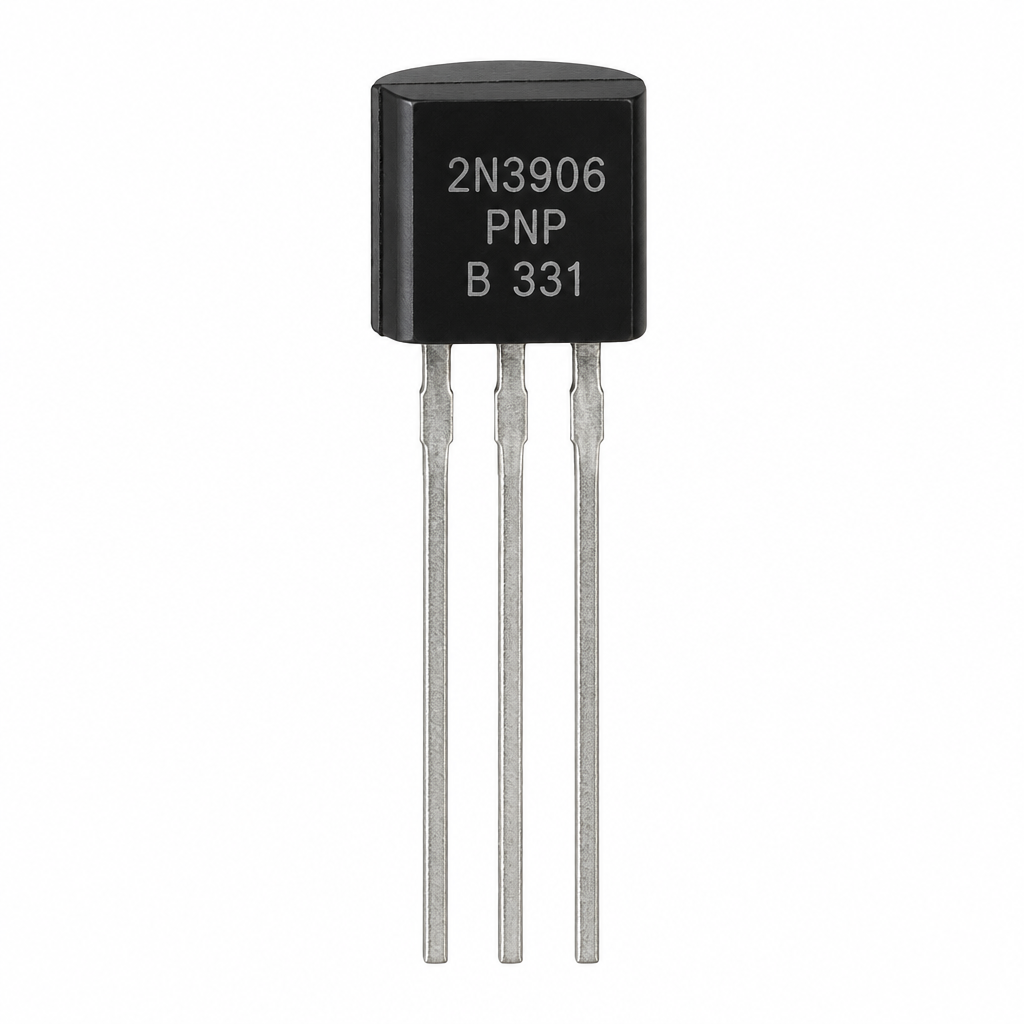

2N3906 PNP General-Purpose BJT Transistor (Min 10 Pcs)
Rs. 2.36
Need a larger quantity? Get a bulk quote.
The 2N3906 is the PNP complement to the 2N3904 — a general-purpose bipolar junction transistor in TO-92 package. Widely used in complementary circuit designs alongside the 2N3904 for switching and small-signal amplification. Sold in a minimum of 10 pieces.
Specifications
- Type: PNP BJT
- Collector-Emitter Voltage (VCEO): 40V
- Collector-Base Voltage (VCBO): 40V
- Collector Current (IC): 200mA
- DC Current Gain (hFE): 100–300
- Transition Frequency (fT): 250MHz
- Power Dissipation: 625mW
- Package: TO-92
Applications
High-side switching, complementary push-pull amplifier with 2N3904, level shifter, current source, LED driver, signal amplifier, audio output stage, microcontroller interface.
