3 AMP MOTOR SPEED

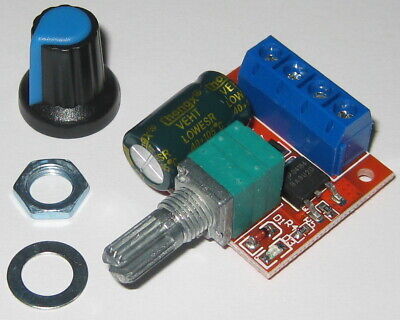

The 1203B PWM DC Motor Speed Controller provides fully adjustable 0%–100% speed control for DC motors and other DC loads up to 3A continuous current. Compatible with DC 6V, 12V, 24V, and 28V supply voltages. Simple 4-terminal connection: Power+, Power–, Motor+, Motor–.

Features:

• Input voltage: DC 6V – 28V
• Max continuous current: 3A
• Speed adjustment: 0% – 100% (fully adjustable via potentiometer)
• PWM control for smooth and efficient speed regulation
• Compatible with most DC motors and resistive DC loads

Pinouts:

• Power+: DC 6V – 28V positive input
• Power–: GND
• Motor+: Motor positive terminal
• Motor–: Motor negative terminal
