74LS00 Quad 2-Input NAND Gate IC TTL (Min 5 Pcs)
Rs. 9.44
Need a larger quantity? Get a bulk quote.

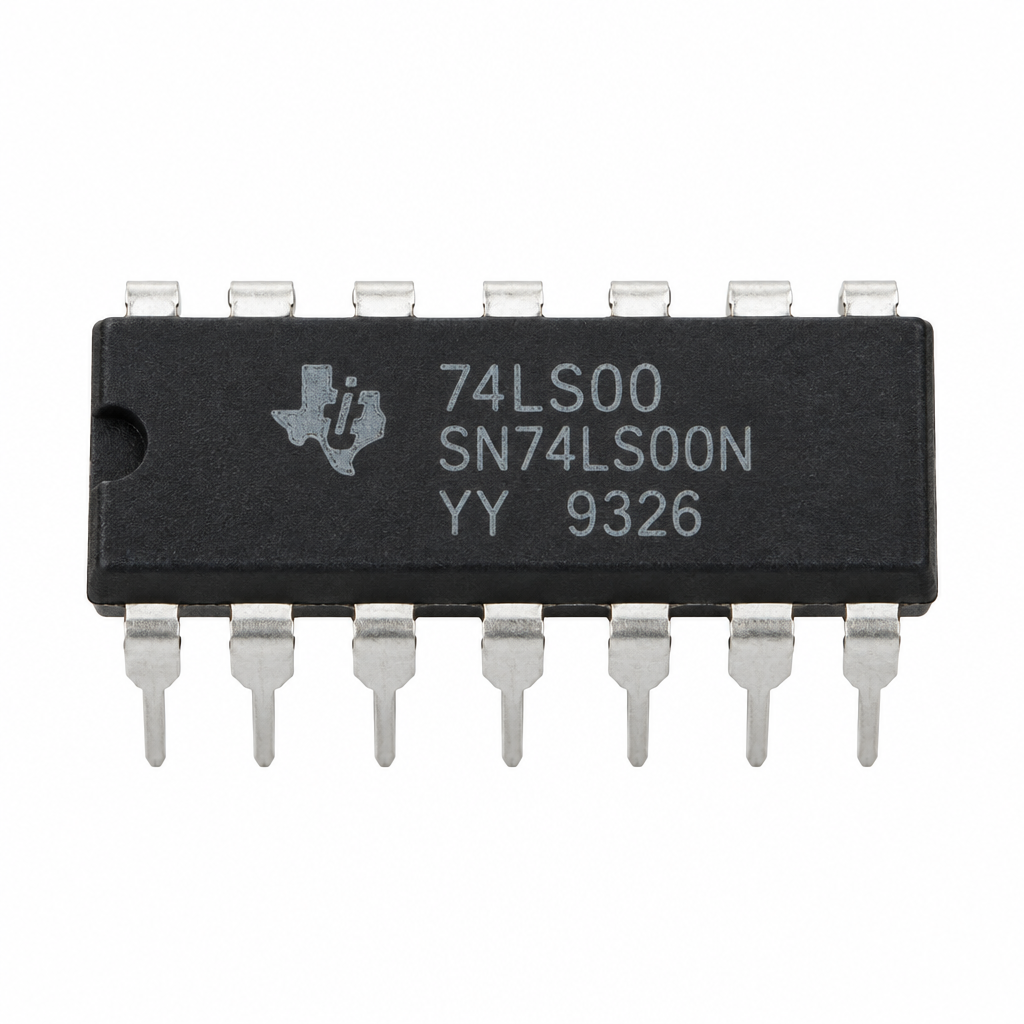

The 74LS00 is a classic TTL (Low-Power Schottky) quad 2-input NAND gate IC in DIP-14 package. An industry workhorse used in digital electronics education and legacy systems. Sold in a minimum of 5 pieces.
Specifications
- Logic Family: 74LS (TTL Low-Power Schottky)
- Gates: 4 × 2-Input NAND
- Supply Voltage: 4.75V to 5.25V
- Propagation Delay: 9ns (typical)
- Output Drive: 8mA sink / 0.4mA source
- Package: DIP-14
Applications
Digital logic design, 5V TTL systems, educational labs, legacy system repair, logic function prototyping.
