74LS04 Hex Inverter Logic IC (Min 5 Pcs)
Rs. 9.44
Need a larger quantity? Get a bulk quote.

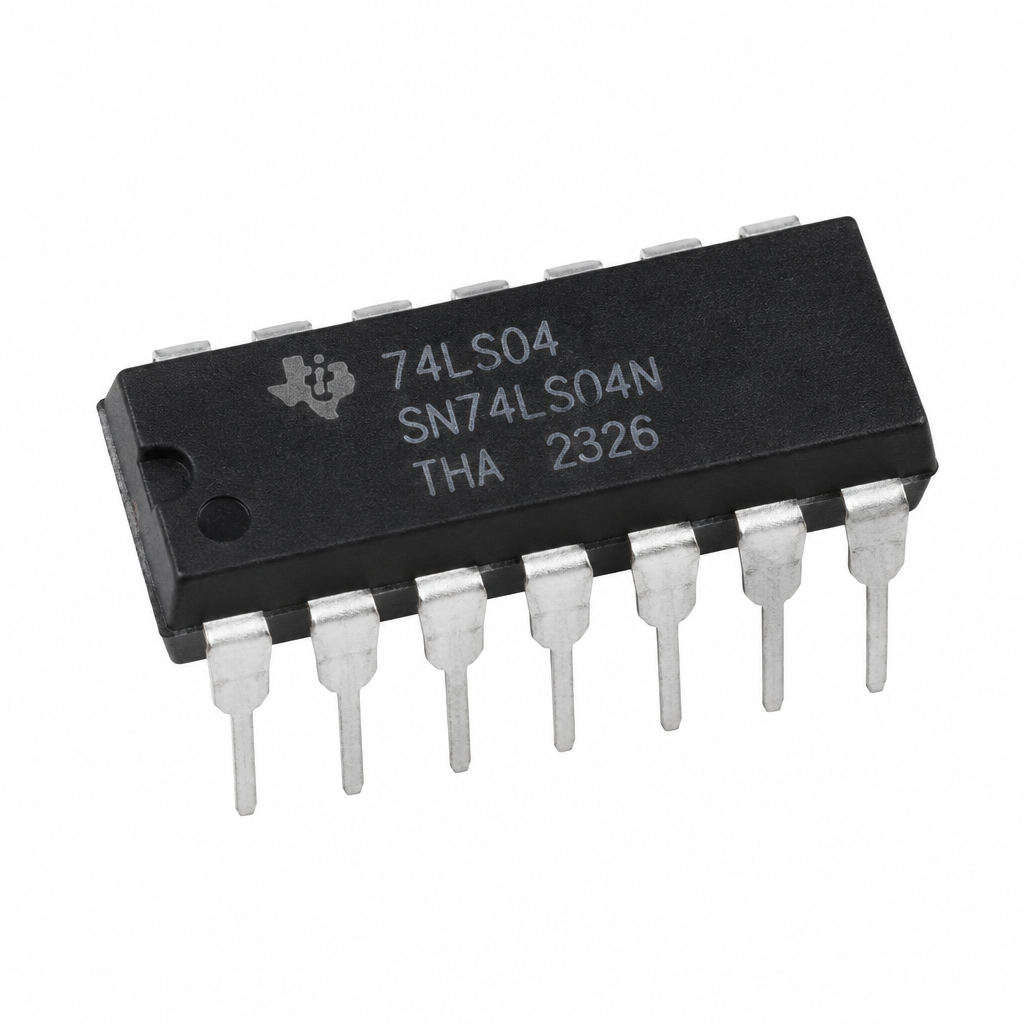

The 74LS04 is the essential hex inverter (NOT gate) in DIP-14 package. Contains six independent inverters — one of the most frequently used logic ICs in digital circuit design. Part of the 74LS TTL logic family. Sold in a minimum of 5 pieces.
Specifications
- Type: Hex Inverter (6 NOT gates)
- Logic Family: 74LS (Low-Power Schottky TTL)
- Supply Voltage (VCC): 4.75V to 5.25V
- Propagation Delay: 9ns (typical)
- Output Current (IOL): 8mA
- Package: DIP-14
Applications
Signal inversion, clock buffering, bus driver, oscillator circuits, logic level conversion, debounce circuit, waveform shaping, digital circuit design and electronics lab experiments.
