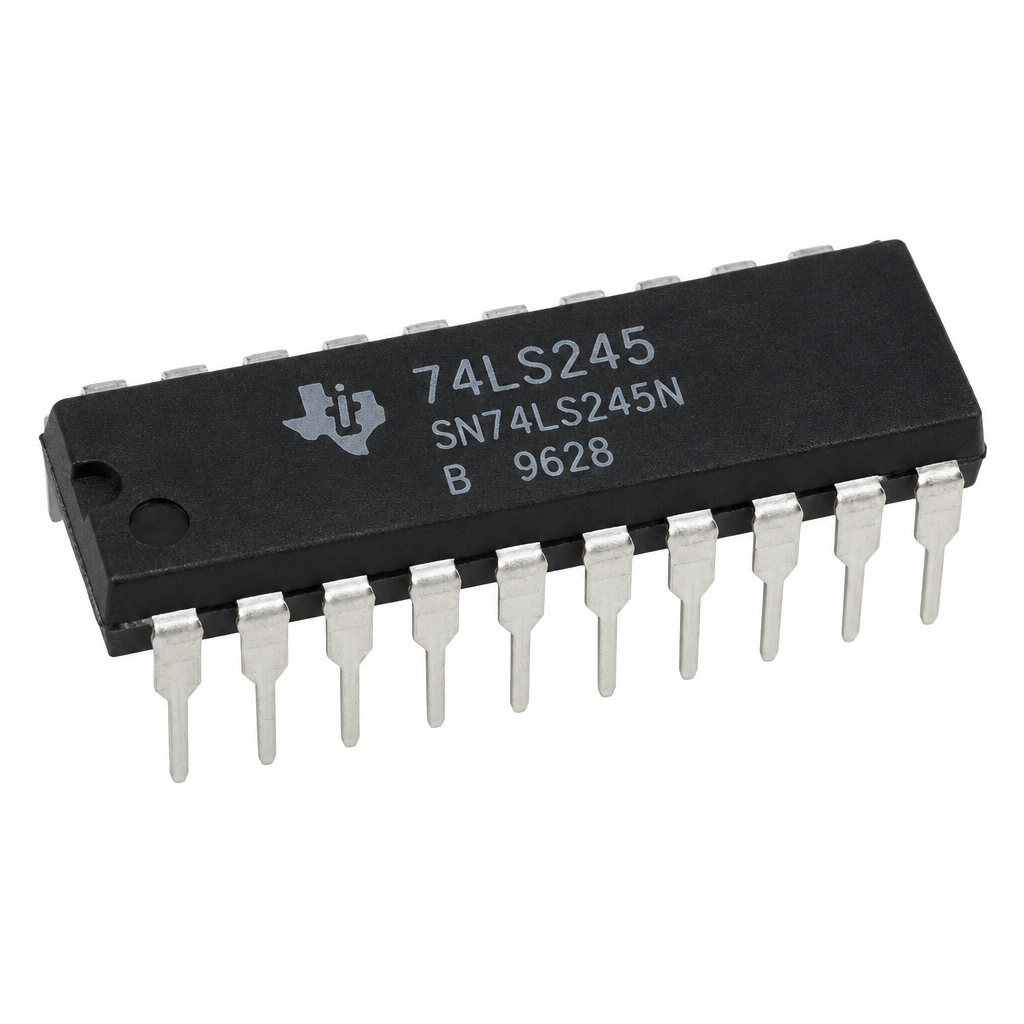

74LS245 Octal Bus Transceiver IC TTL
Rs. 14.16
Need a larger quantity? Get a bulk quote.
The 74LS245 is a TTL (Low-Power Schottky) octal (8-bit) bus transceiver with 3-state outputs in DIP-20 package. The TTL counterpart to the 74HC245, widely used in 5V microprocessor bus systems. Sold in a minimum of 5 pieces.
Specifications
- Logic Family: 74LS (TTL Low-Power Schottky)
- Function: 8-bit Bidirectional Bus Transceiver
- Supply Voltage: 4.75V to 5.25V
- Output: 3-State
- Direction Control: DIR pin
- Output Enable: Active-Low OE pin
- Package: DIP-20
Applications
8085/8051 data bus buffering, 5V bidirectional data transfer, bus isolation, memory interfacing, industrial TTL systems.
