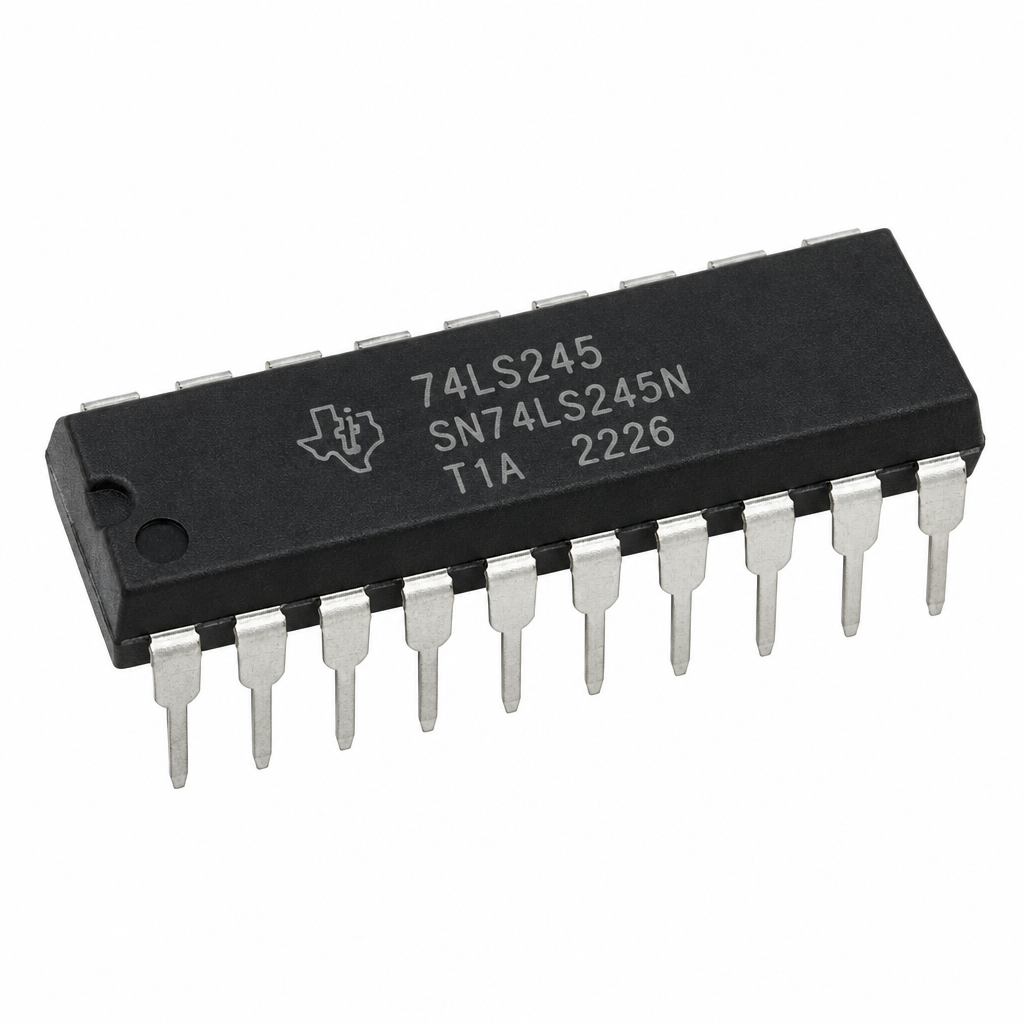

74LS245 Octal Bus Transceiver Logic IC (Min 5 Pcs)
Rs. 21.24
Need a larger quantity? Get a bulk quote.
The 74LS245 is a popular octal (8-bit) tri-state bus transceiver in DIP-20 package. Provides bidirectional data transfer between two buses with direction control and output enable, ideal for microprocessor data bus buffering. Part of the 74LS TTL logic family. Sold in a minimum of 5 pieces.
Specifications
- Type: Octal Bus Transceiver (bidirectional, tri-state)
- Logic Family: 74LS (Low-Power Schottky TTL)
- Supply Voltage (VCC): 4.75V to 5.25V
- Propagation Delay: 12ns (typical)
- Output Current (IOL): 24mA
- Direction Control: DIR pin
- Package: DIP-20
Applications
Microprocessor data bus buffer, bidirectional level shifter, memory bus interface, I/O expansion, bus isolation, system bus driver, 8051/Z80/6800 bus interface circuits.
