8CH 5V RELAY MODULE
Rs. 271.40
Skip to product information
8CH 5V RELAY MODULE
Rs. 271.40
Need a larger quantity? Get a bulk quote.

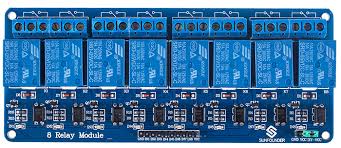

The 8-Channel 5V Opto-Isolated Relay Module allows microcontrollers to independently control 8 high-current or high-voltage loads. Each relay is isolated via optocoupler for safe separation of control and load circuits. Supports both high-level and low-level trigger modes, making it compatible with 3.3V, 5V, and 12V microcontroller outputs.
Suitable for Arduino, AVR, PIC, ARM, Raspberry Pi, PLC, and any TTL-logic controller. Applications include smart home control, industrial switching, appliance automation, and AC/DC load switching.
Features:
- 8 independent opto-isolated relay channels
- Trigger voltage: 5V DC (active low or active high selectable)
- Switching capacity: 10A @ 250V AC / 10A @ 30V DC
- Supports high-level and low-level trigger modes
- Power indicator LED + relay status LED per channel
- Each relay: 1 x COM, 1 x NO, 1 x NC terminal
- Compliant with international safety isolation standards
- Compatible with Arduino, Raspberry Pi, PLC, ARM, AVR, PIC
