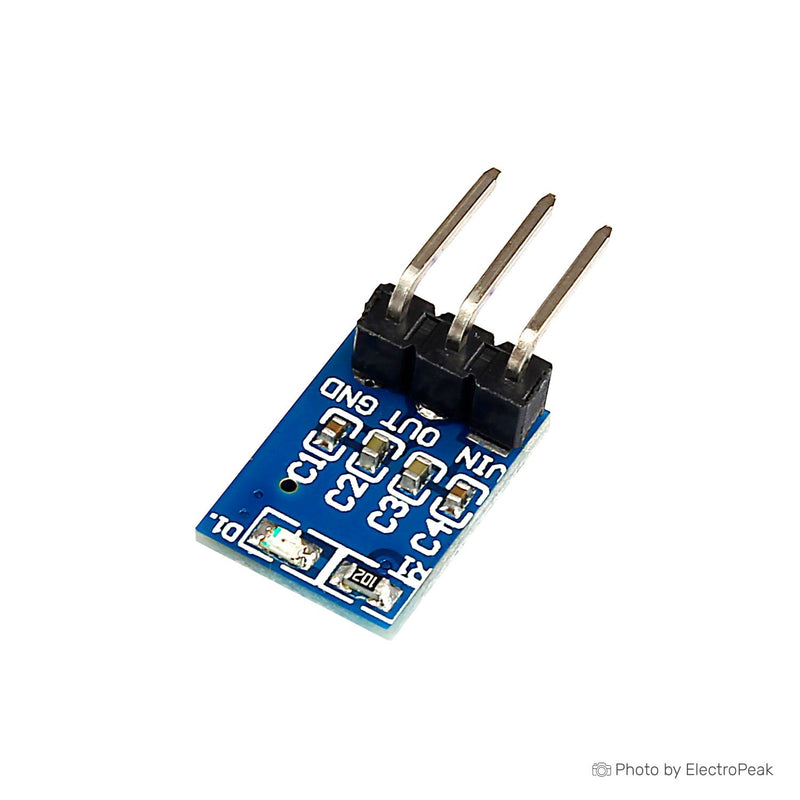

AM1117 3.3V

The AMS1117 3.3V Power Supply Module provides a stable 3.3V regulated output from a wide input voltage range (4.5V–12V). Based on the AMS1117-3.3 LDO regulator, it delivers up to 800mA output current with onboard power indicator LED. Breadboard-friendly 0.1" header pins for easy integration.

Note: Do not exceed 12.5V input or the rated output current — this may cause permanent damage.

Features:

• IC: AMS1117-3.3
• Input voltage: 4.5V – 12V
• Output voltage: 3.3V (fixed)
• Max output current: 800mA
• Onboard power indicator LED (red)
• 0.1" (2.54mm) header pins — breadboard compatible
• Compact dual-panel PCB design
• Suitable for 3.3V microcontrollers, sensors, and modules
