APM POWER MODULE
Rs. 544.00

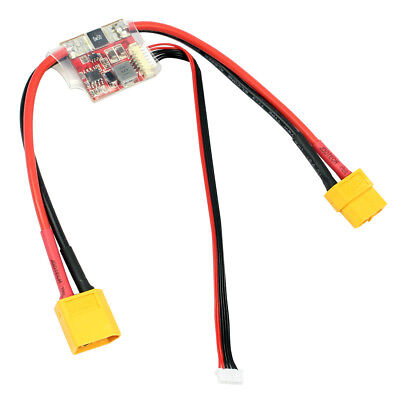

The APM/PIXHAWK Power Module provides clean, regulated power to your flight controller from a LiPo battery while simultaneously measuring current consumption and battery voltage. Connects via a 6-pos DF13 cable directly to the APM 2.5 'PM' connector. Comes fully assembled with XT60 connectors and shrink-wrapped for protection.
Specifications:
- Max Input Voltage: 18V (up to 4S LiPo)
- Max Current Sensing: 90A
- Regulator Output: 5.3V @ 2.25A max
- ADC: 5V, voltage and current measurement
- Connector: 6-pos DF13 cable
- Discharge Connector: XT60
