ARDUINO DUE
Rs. 1,768.00
Skip to product information
ARDUINO DUE
Rs. 1,768.00

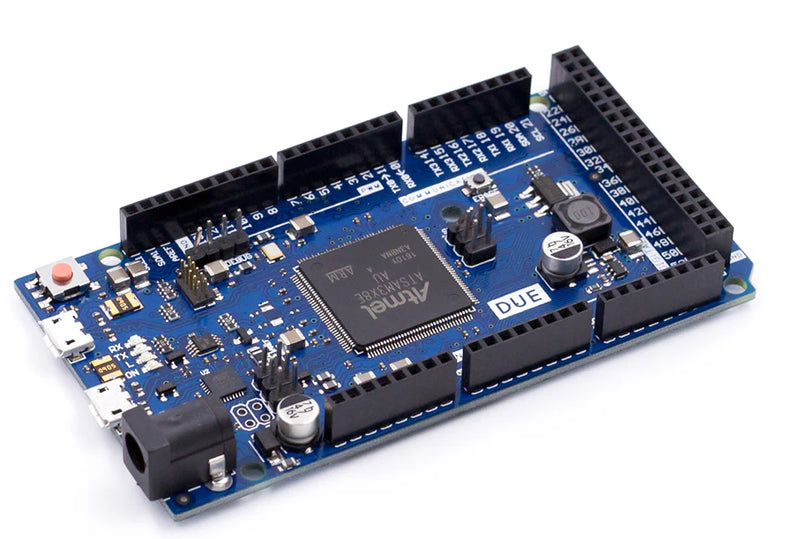

The Arduino Due is the first Arduino board based on a 32-bit ARM Cortex-M3 processor (Atmel SAM3X8E). It offers significantly more processing power, memory, and I/O than AVR-based Arduino boards. Operates at 3.3V — compatible with all 3.3V shields and 1.0 Arduino pinout shields.
Specifications:
- Microcontroller: AT91SAM3X8E (ARM Cortex-M3)
- Clock speed: 84 MHz
- Operating voltage: 3.3V
- Input voltage (recommended): 7–12V | (limits): 6–16V
- Digital I/O pins: 54 (12 PWM)
- Analog input pins: 12
- Analog output (DAC): 2
- Flash memory: 512KB | SRAM: 96KB (64+32KB)
- USB: 2 × Micro USB (programming + native USB OTG)
- UART: 4 | TWI: 2 | SPI: yes | CAN: yes | JTAG: yes
- Total DC output current (all I/O): 130mA
- DMA controller for memory-intensive tasks
