ARDUINO MEGA CH340
Rs. 1,122.00

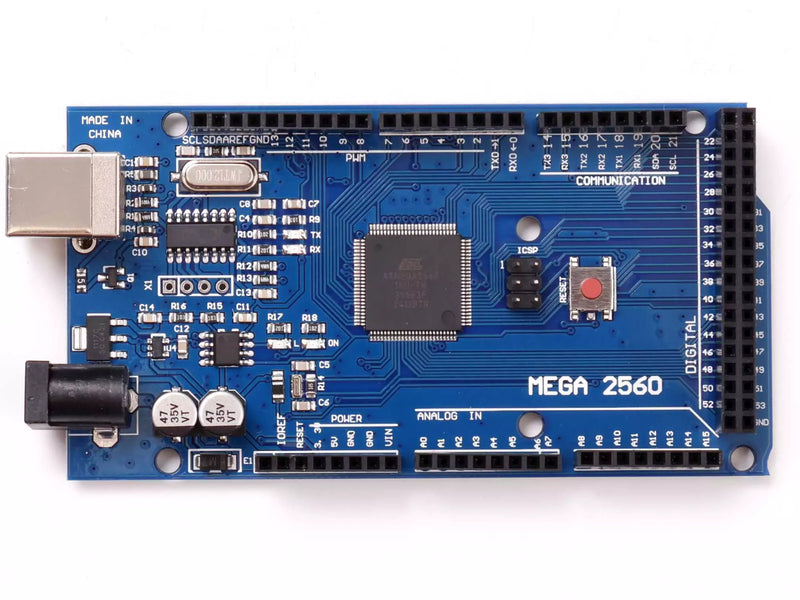

The Arduino Mega 2560 CH340G is a microcontroller board based on the ATmega2560 with CH340G USB-to-serial converter. Compatible with the Arduino Mega 2560 in all hardware and software respects. Features 54 digital I/O, 16 analog inputs, 4 UARTs, and 256KB flash. Can be powered via USB or external 2.1mm barrel jack (7–12V recommended).
Specifications:
- Microcontroller: ATmega2560
- USB-Serial IC: CH340G
- Operating voltage: 5V
- Input voltage (recommended): 7–12V | (limits): 6–20V
- Digital I/O pins: 54 (15 PWM)
- Analog input pins: 16
- DC current per I/O pin: 40mA | 3.3V pin: 50mA
- Flash memory: 256KB (8KB bootloader)
- SRAM: 8KB | EEPROM: 4KB
- Clock speed: 16MHz
- Connectivity: USB-B, ICSP header, power jack
