ARDUINO MEGA MINI
Rs. 1,564.00

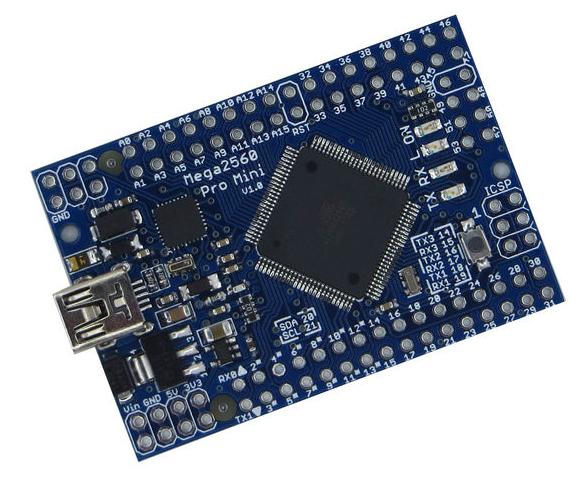

The Mega 2560 Pro Mini is a compact development board based on the ATmega2560-16AU microcontroller with CH340G USB-UART interface. Fully compatible with the Arduino Mega 2560, it offers all the same I/O capabilities in a smaller footprint. Powered via Micro USB or external supply (6–9V recommended).
Specifications:
- Microcontroller: ATmega2560
- Operating Voltage: 5V
- Input Voltage: 6–9V (recommended), 12V max
- Digital I/O Pins: 54 (15 PWM)
- Analog Input Pins: 16
- DC Current (5V / 3.3V): 800mA each
- Flash Memory: 256KB (8KB bootloader)
- SRAM: 8KB | EEPROM: 4KB
- Clock Speed: 16MHz
- Dimensions: 54 × 40 × 18mm | Weight: 15g
