ARDUINO PRO MINI
Rs. 193.52
Need a larger quantity? Get a bulk quote.

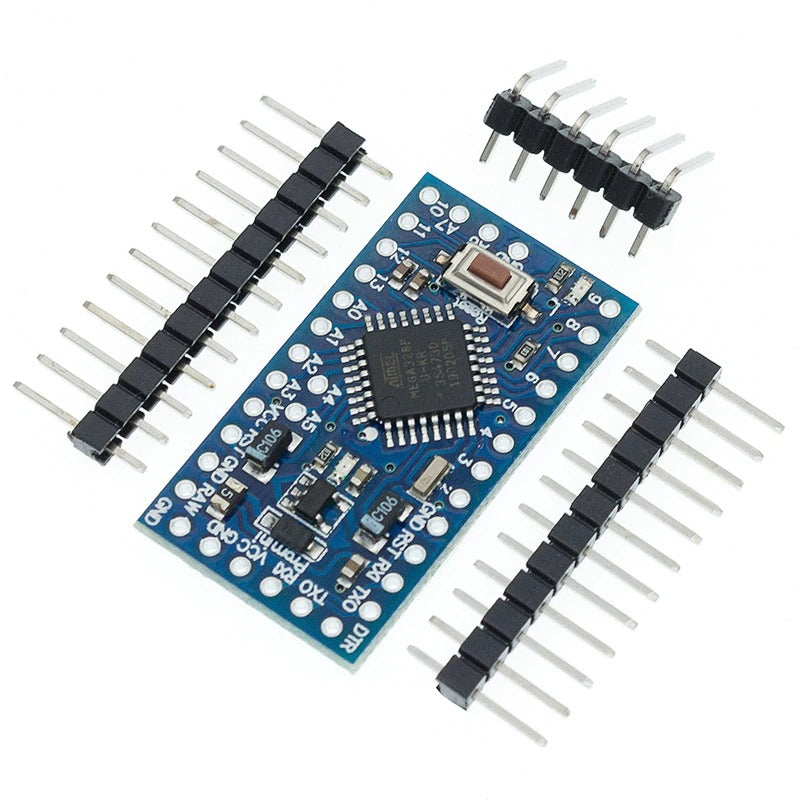

The Arduino Pro Mini (5V/16MHz) is an ultra-compact ATmega328P-based board designed for semi-permanent installations. Weighs under 2g with a 0.8mm thin PCB. USB is off-board — connect via FTDI cable or adapter. Pin-compatible with the Arduino Mini. Supplied without headers.
Features:
- ATmega328P at 16MHz with external resonator (0.5% tolerance)
- 0.8mm thin PCB, weighs <2g
- 5V onboard regulator, max 150mA output
- Over-current protected
- Supports auto-reset
- Onboard power and status LEDs
- USB off-board (requires FTDI cable)
| Microcontroller: | ATmega328P |
|---|---|
| Operating Voltage: | 5V |
| Clock Speed: | 16MHz |
| Digital I/O Pins: | 14 (6 PWM) |
| Analog Input Pins: | 8 |
| DC Input: | 5V to 12V |
| Dimensions: | 18 × 33mm |
