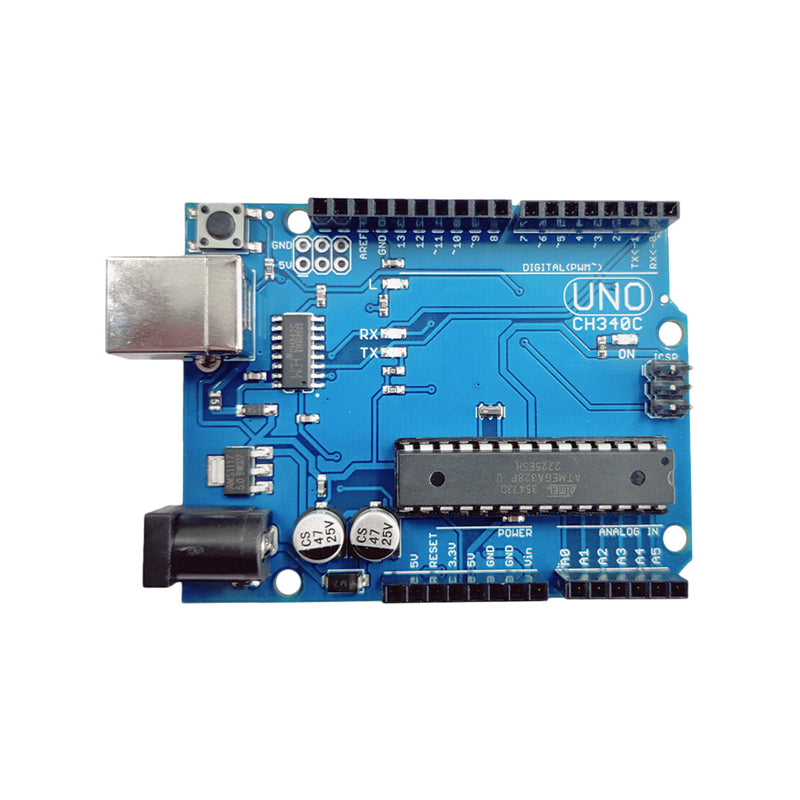

ARDUINO UNO R3 DIP IC
Rs. 348.10
Need a larger quantity? Get a bulk quote.
The Arduino Uno R3 (DIP IC) is the reference Arduino board based on the ATmega328 in a removable DIP package. Features ATmega16U2 for USB-to-serial, 14 digital I/O (6 PWM), 6 analog inputs, I2C, SPI, and UART. Powered via USB or external DC jack (7–12V recommended). The standard platform for learning and rapid prototyping with Arduino.
Specifications:
- Microcontroller: ATmega328 (DIP)
- USB-Serial IC: ATmega16U2
- Operating voltage: 5V
- Input voltage (recommended): 7–12V | (limits): 6–20V
- Digital I/O pins: 14 (6 PWM)
- Analog input pins: 6
- DC current per I/O pin: 40mA | 3.3V pin: 50mA
- Flash: 32KB (0.5KB bootloader) | SRAM: 2KB | EEPROM: 1KB
- Clock speed: 16MHz
- Communication: UART, SPI, I2C (TWI)
- PCB size: 68.6 × 53.4mm
