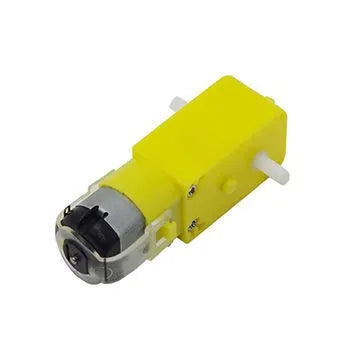

BO MOTOR 200 RPM DUAL SHAFT
Rs. 54.40
Skip to product information
BO MOTOR 200 RPM DUAL SHAFT
Rs. 54.40
200 RPM dual-shaft BO gearmotor with straight gearbox and Double D-type output shafts (5.5mm diameter). Operates from 3–12V DC with good torque at low voltages. Lightweight plastic gear construction with mounting holes on the body. Pairs directly with 65–69mm BO wheels for 2WD/4WD robot platforms.
Specifications:
- Operating voltage: 3V – 12V DC
- Rated speed: 200 RPM
- Rated torque: 0.55 Kgcm
- No-load current: 40 – 180mA
- Shaft type: Dual shaft, Double D-type
- Shaft diameter: 5.5mm | Shaft length: 8.5mm
- Gearbox shape: Straight (dual shaft)
- Weight: 30g
- Dimensions: 70 × 23 × 19mm
