BT136 4A 600V TRIAC TO-220 (Min 5 Pcs)
Rs. 14.16
Skip to product information
BT136 4A 600V TRIAC TO-220 (Min 5 Pcs)
Rs. 14.16
Need a larger quantity? Get a bulk quote.

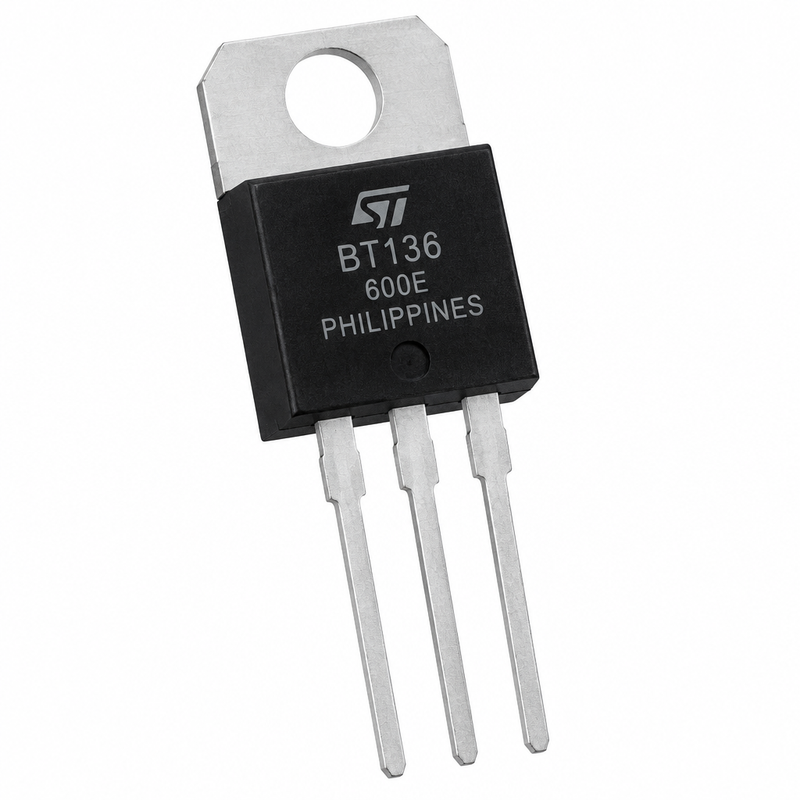

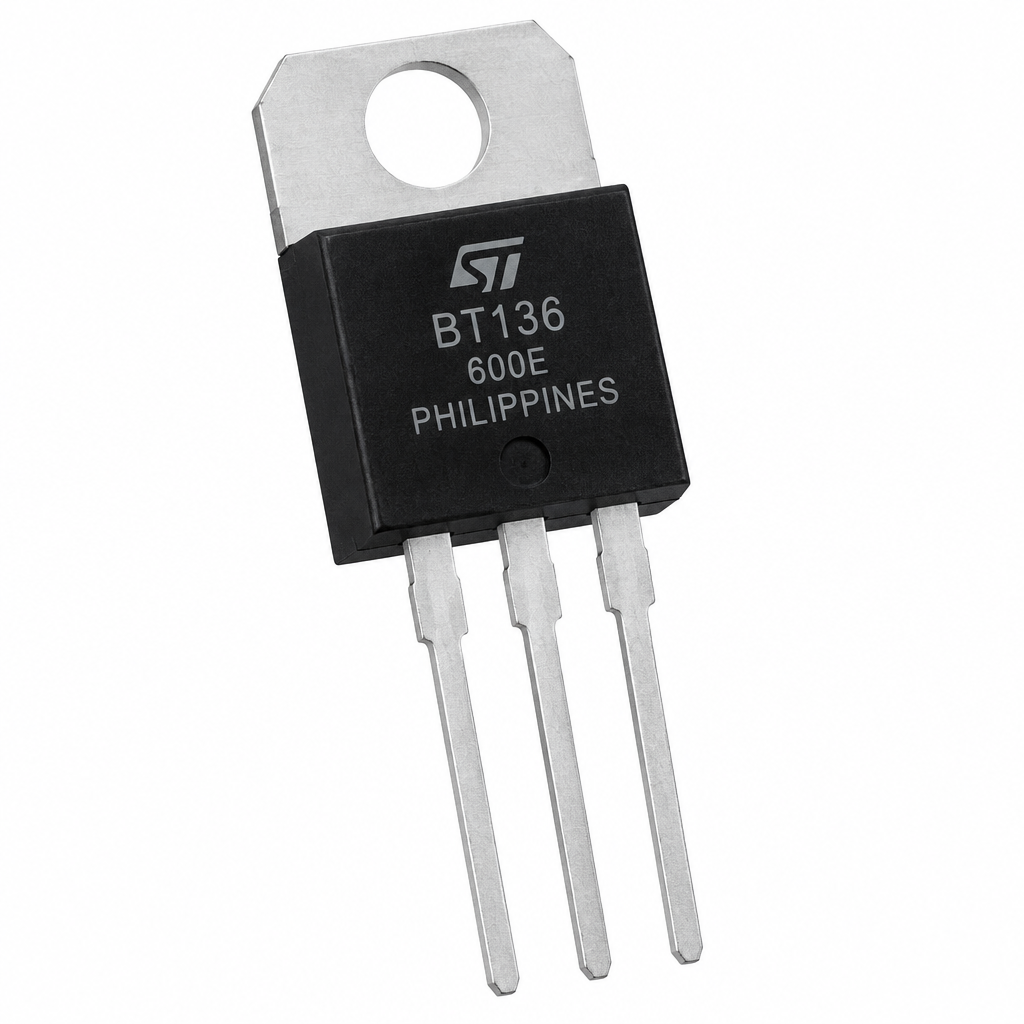

The BT136 is a popular 4A, 600V TRIAC in TO-220 package for AC power control. Suitable for phase-angle dimming, motor speed control, and solid-state relay designs. Sensitive gate triggering makes it easy to drive directly from logic-level opto-couplers. Sold in a minimum of 5 pieces.
Specifications
- Type: TRIAC
- Repetitive Peak Off-State Voltage (VDRM): 600V
- RMS On-State Current (IT(RMS)): 4A
- Gate Trigger Current (IGT): 5mA (Q1) / 25mA (Q3)
- Holding Current (IH): 10mA
- On-State Voltage (VT): 1.5V typical
- Package: TO-220
Applications
AC light dimmer, fan speed controller, heater power control, solid-state relay, motor soft-start, optocoupler-driven AC switch, appliance power control.
