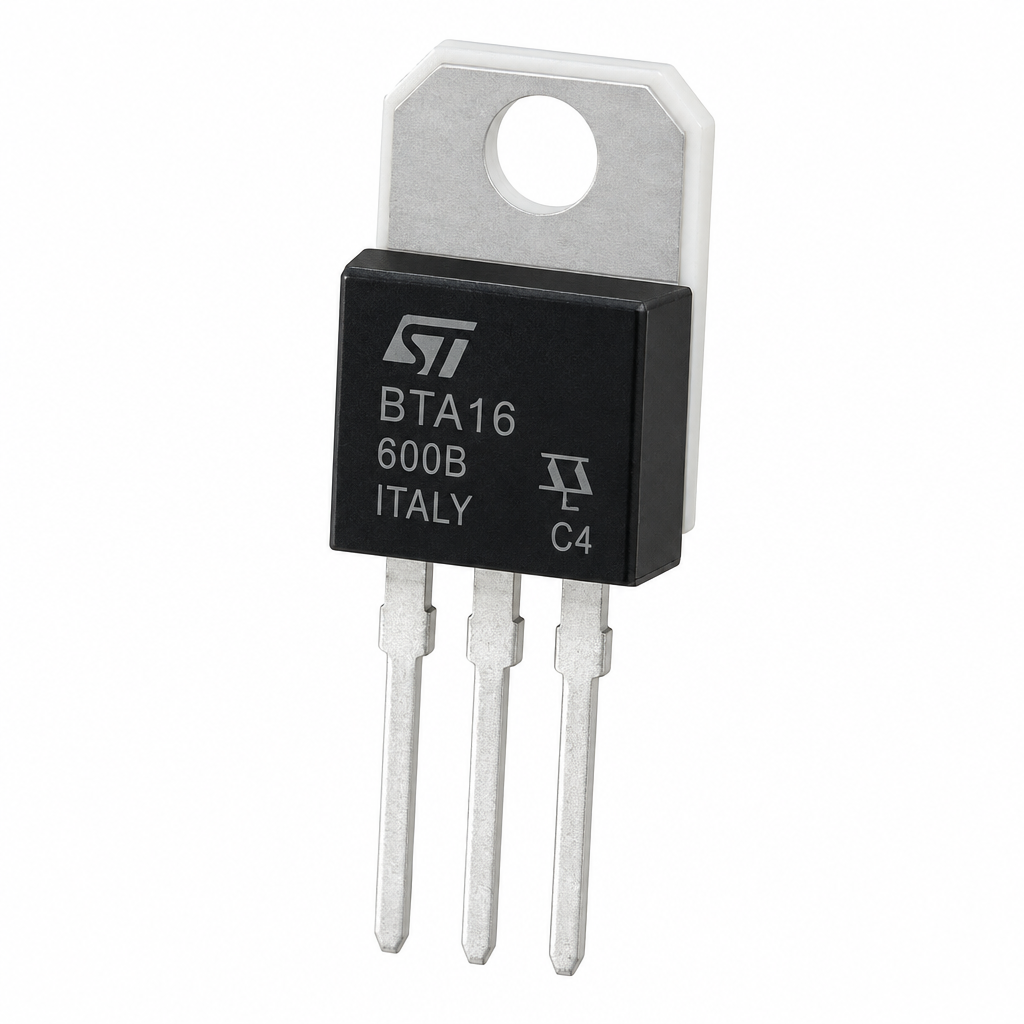

BTA16 16A 600V Insulated TRIAC (Min 5 Pcs)
Rs. 41.30
Skip to product information
BTA16 16A 600V Insulated TRIAC (Min 5 Pcs)
Rs. 41.30
Need a larger quantity? Get a bulk quote.
The BTA16 is a high-current 16A 600V insulated TRIAC in TO-220AB package. Features an electrically isolated metal tab, allowing direct mounting to a heatsink without an insulating washer. Sold in a minimum of 5 pieces.
Specifications
- Type: Insulated TRIAC (TO-220AB)
- Repetitive Peak Off-State Voltage (VDRM): 600V
- RMS On-State Current (IT): 16A
- Gate Trigger Current (IGT): 50mA (typical)
- Holding Current (IH): 50mA (typical)
- Isolation Voltage: 2500V (tab to terminals)
- Package: TO-220AB (insulated tab)
Applications
High-power AC motor control, industrial heating systems, power tool speed control, solid-state relay, direct heatsink mounting without insulator, AC power switching.
