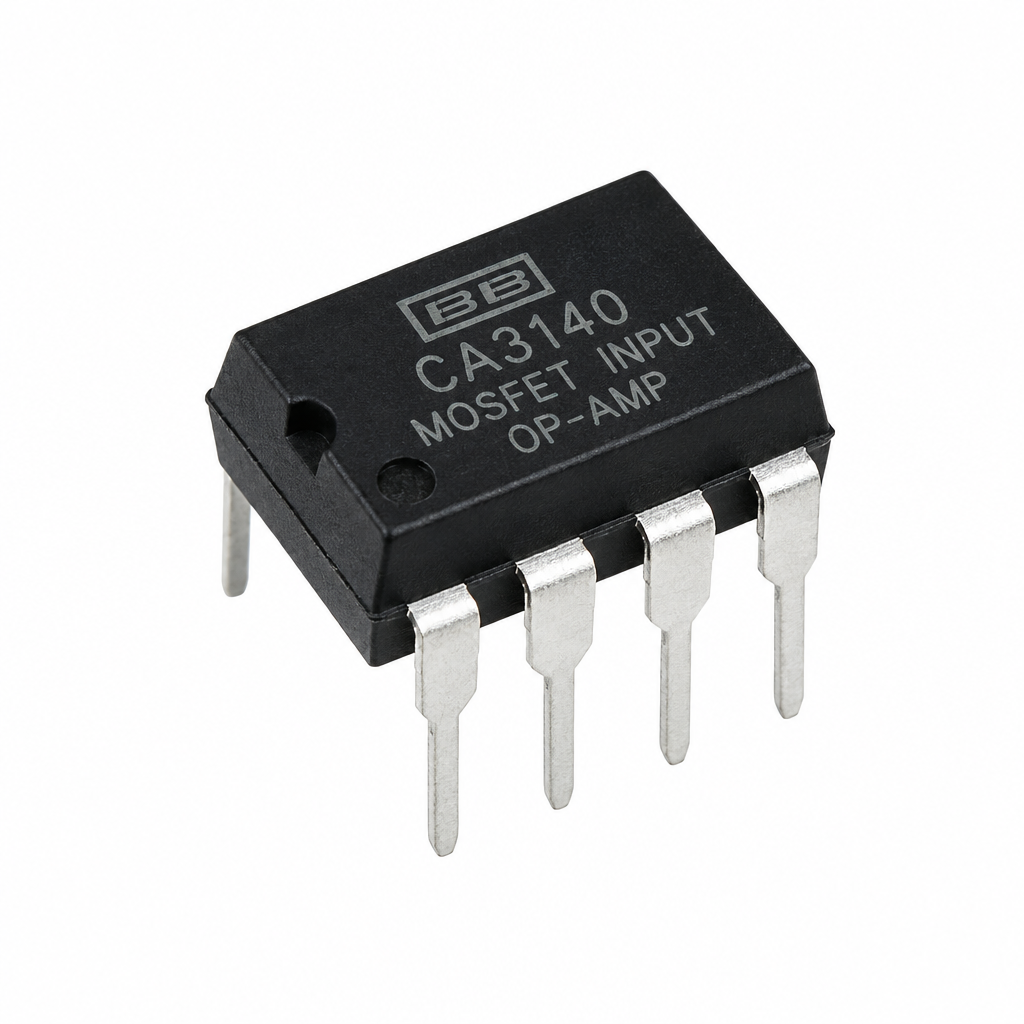

CA3140 MOSFET-Input Op-Amp IC (Min 5 Pcs)
Rs. 29.50
Skip to product information
CA3140 MOSFET-Input Op-Amp IC (Min 5 Pcs)
Rs. 29.50
Need a larger quantity? Get a bulk quote.
The CA3140 is a premium MOSFET-input operational amplifier in DIP-8 package. Combines PMOS transistor inputs with a bipolar output stage, offering extremely high input impedance (1.5TΩ) and very low input bias current — ideal for electrometer and precision sensor circuits. Sold in a minimum of 5 pieces.
Specifications
- Type: Single MOSFET-Input Op-Amp
- Supply Voltage: ±2V to ±18V
- Input Impedance: 1.5TΩ (typical)
- Input Bias Current: 10pA (typical)
- Gain Bandwidth Product (GBW): 4.5MHz
- Slew Rate: 9V/µs
- Package: DIP-8
Applications
Electrometer amplifier, pH electrode amplifier, photodiode current amplifier, sample-and-hold circuit, precision voltage follower, high-impedance sensor interface, instrumentation amplifier front-end.
