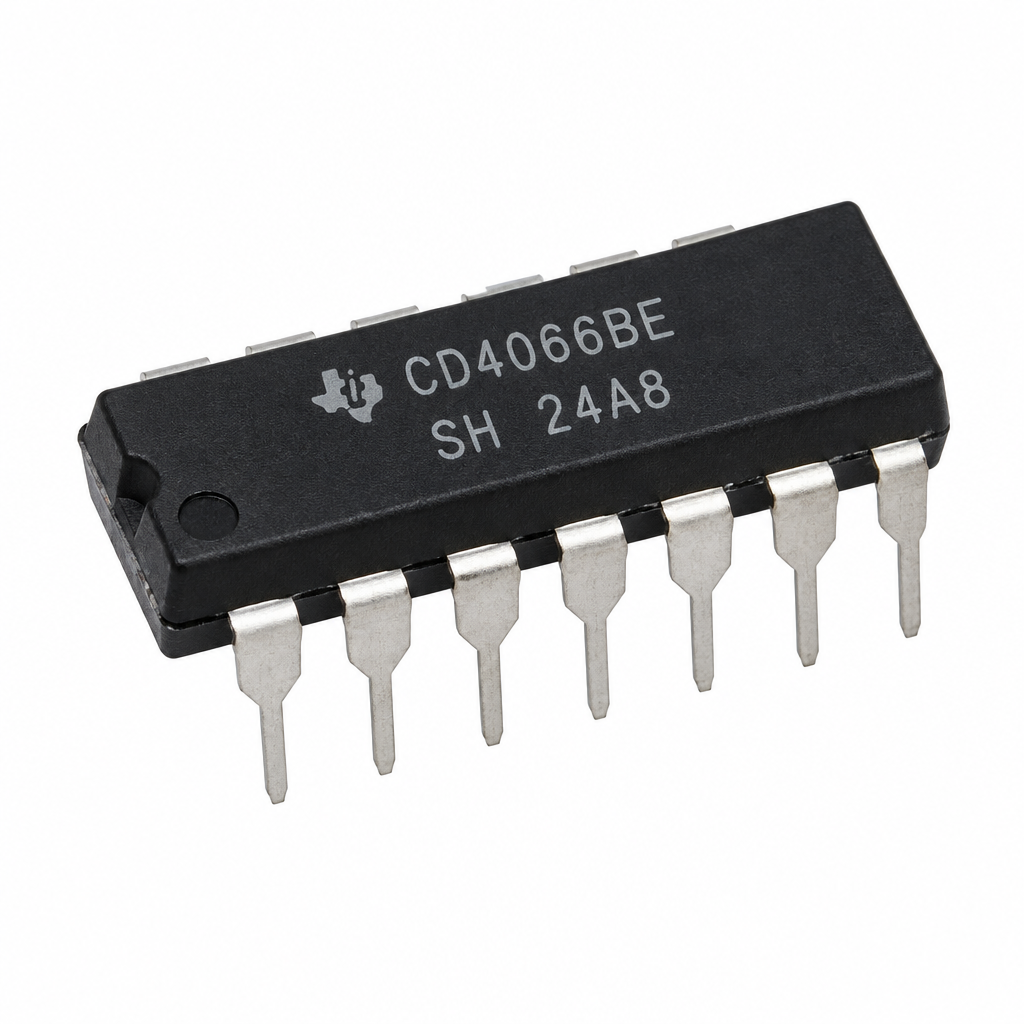

CD4066 Quad Bilateral Switch CMOS IC (Min 5 Pcs)
Rs. 17.70
Need a larger quantity? Get a bulk quote.
The CD4066 is a quad bilateral analog switch in DIP-14 package from the 4000 series CMOS family. Contains four independent SPST switches that can pass analog or digital signals in both directions — ideal for signal gating, muting, and multiplexing. Sold in a minimum of 5 pieces.
Specifications
- Type: Quad Bilateral SPST Analog Switch (4 switches)
- Logic Family: 4000 Series CMOS
- Supply Voltage (VDD): 3V to 18V
- On-Resistance: 80Ω typical @ 5V
- Signal Voltage Range: 0V to VDD
- Control Input: Logic-level control per switch
- Package: DIP-14
Applications
Audio signal mute/switching, analog signal gating, sample-and-hold circuit, programmable filter, DTMF tone switching, signal routing matrix, microcontroller-controlled relay alternative.
