CD4511 BCD to 7-Segment Decoder/Driver CMOS IC (Min 5 Pcs)
Rs. 17.70
Skip to product information
CD4511 BCD to 7-Segment Decoder/Driver CMOS IC (Min 5 Pcs)
Rs. 17.70
Need a larger quantity? Get a bulk quote.

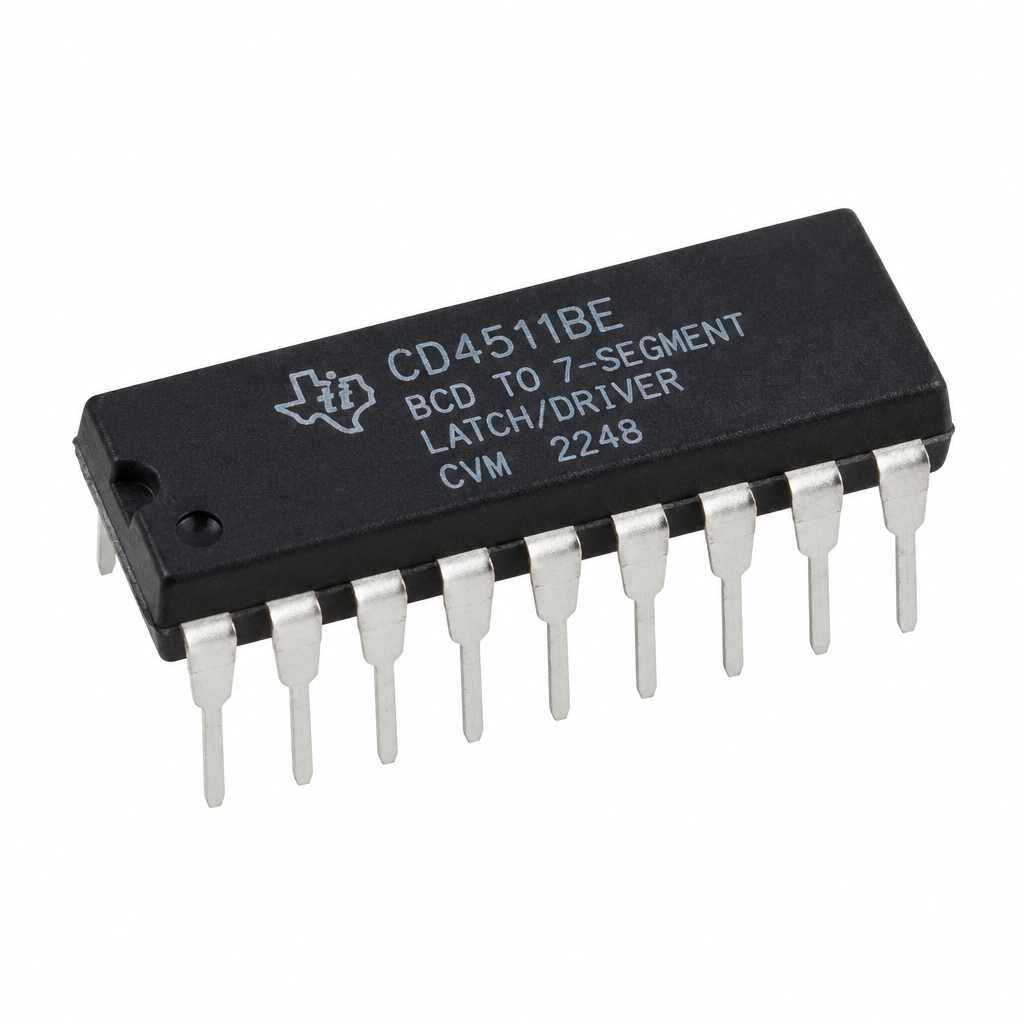

The CD4511 is a BCD to 7-segment latch/decoder/driver in DIP-16 package from the 4000 series CMOS family. Converts 4-bit BCD input directly to the 7-segment output needed to drive common-cathode LED displays — a classic for digital counters and clocks. Sold in a minimum of 5 pieces.
Specifications
- Type: BCD to 7-Segment Latch/Decoder/Driver
- Logic Family: 4000 Series CMOS
- Supply Voltage (VDD): 3V to 18V
- Display Type: Common-cathode LED 7-segment
- Output Current (IOH): 25mA per segment
- Features: Internal latch, blanking, lamp test
- Package: DIP-16
Applications
7-segment LED display driver, digital counter display, digital clock, BCD display decoder, frequency counter readout, stopwatch display, lab bench digit display.
