CD4518 Dual BCD Up-Counter CMOS IC (Min 5 Pcs)
Rs. 23.60
Skip to product information
CD4518 Dual BCD Up-Counter CMOS IC (Min 5 Pcs)
Rs. 23.60
Need a larger quantity? Get a bulk quote.

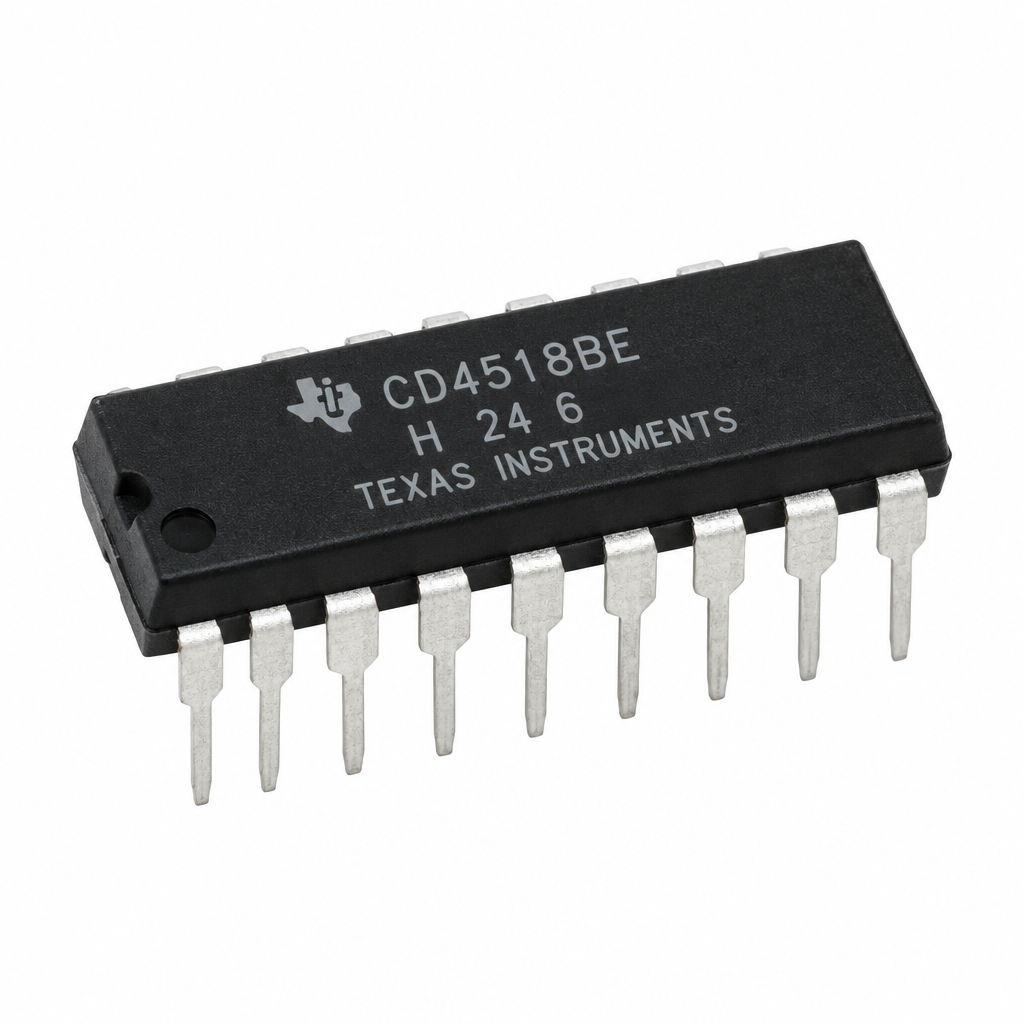

The CD4518 is a dual synchronous BCD up-counter in DIP-16 package from the 4000 series CMOS family. Contains two independent 4-bit decade counters that count 0–9 in BCD — perfect for multi-digit counting systems and direct interfacing with 7-segment decoders like the CD4511. Sold in a minimum of 5 pieces.
Specifications
- Type: Dual Synchronous BCD Up-Counter (2 × 4-bit)
- Logic Family: 4000 Series CMOS
- Supply Voltage (VDD): 3V to 18V
- Max Clock Frequency: 6MHz @ 10V
- Count Range: 0–9 (BCD) per counter
- Clock: Rising-edge CLK or falling-edge EN
- Package: DIP-16
Applications
Multi-digit decimal counter, digital clock, frequency counter (units & tens digit), event counter with 7-segment display, BCD arithmetic circuit, CD4511 companion counter, lab experiments.
