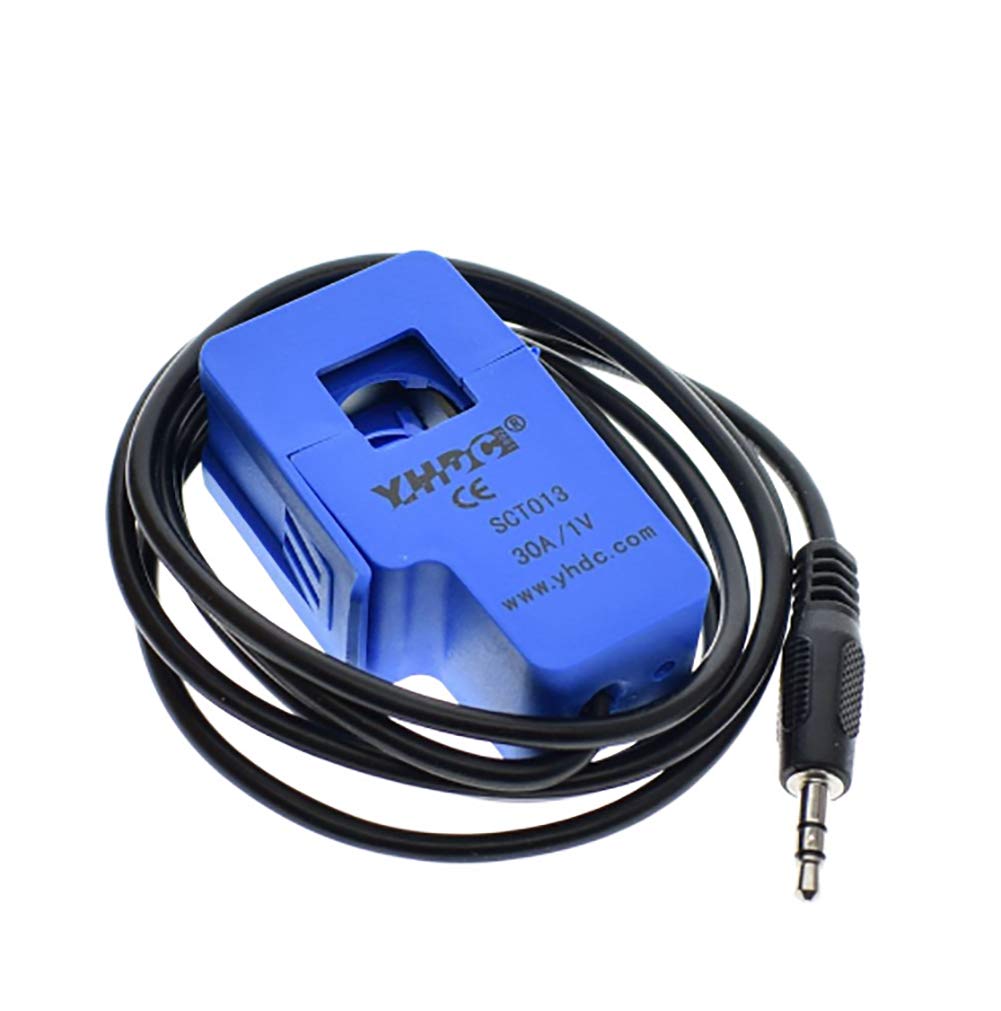

CURRENT SENSOR SCT013 30AMP
Rs. 424.80
Need a larger quantity? Get a bulk quote.
The SCT-013-030 is a non-invasive split-core AC current transformer that clamps around a wire to measure AC current up to 30A. No high-voltage wiring required. Outputs a small AC voltage proportional to the current via a 3.5mm jack. Ideal for energy monitoring and over-current protection applications.
Features:
- Non-invasive split-core design — clamp onto wire without cutting
- Measures AC current up to 30A
- Output: 0–1V AC @ 30mA (via 3.5mm jack)
- Non-linearity: ±3% (10–120% rated input)
- Dielectric strength: 6000VAC/1min
- UL94-V0 flame retardant
| Rated Current: | 30A |
|---|---|
| Output: | 0–1V @ 30mA, 3.5mm jack |
| Dielectric Strength: | 6000VAC/1min |
| Operating Temperature: | -25 to +85°C |
Applications:
- Home energy monitoring
- AC motor monitoring and protection
- Over-current protection devices
