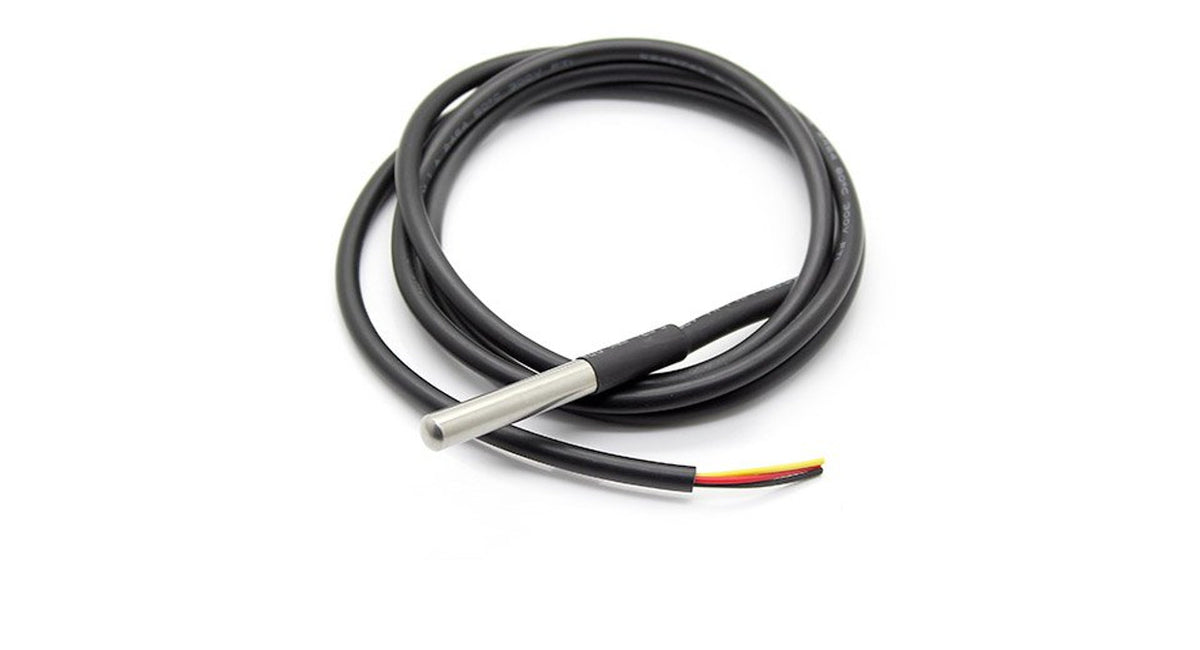

DS18B20 PROBE WATER TEMPERATURE SENSOR

The DS18B20 Waterproof Temperature Probe features a stainless steel enclosure and 1m cable, making it ideal for liquid and wet environment temperature sensing. Uses the 1-Wire protocol — only one digital pin needed, and multiple probes can share the same pin. Each sensor has a unique 64-bit factory-burned ID. Compatible with 3.0–5.5V systems.

Note: Use a 4.7kΩ pull-up resistor from DATA to VCC. Probe wire length may vary ±3%.

Wire Connections:

• Red — VCC (3V–5.5V)
• Yellow/White — DATA (1-Wire)
• Black — GND

Specifications:

• Sensor IC: DS18B20
• Operating Voltage: 3V–5.5V
• Temperature Range: -55°C to +125°C
• Accuracy: ±0.5°C
• Resolution: 9–12 bit selectable
• Interface: 1-Wire (single digital pin)
• Cable Length: 1 metre
• Probe: Stainless steel, 6mm × 30mm

Applications:

• Water and liquid temperature monitoring
• Aquarium and pool controllers
• Weather stations and outdoor sensing
• Multi-point temperature logging
