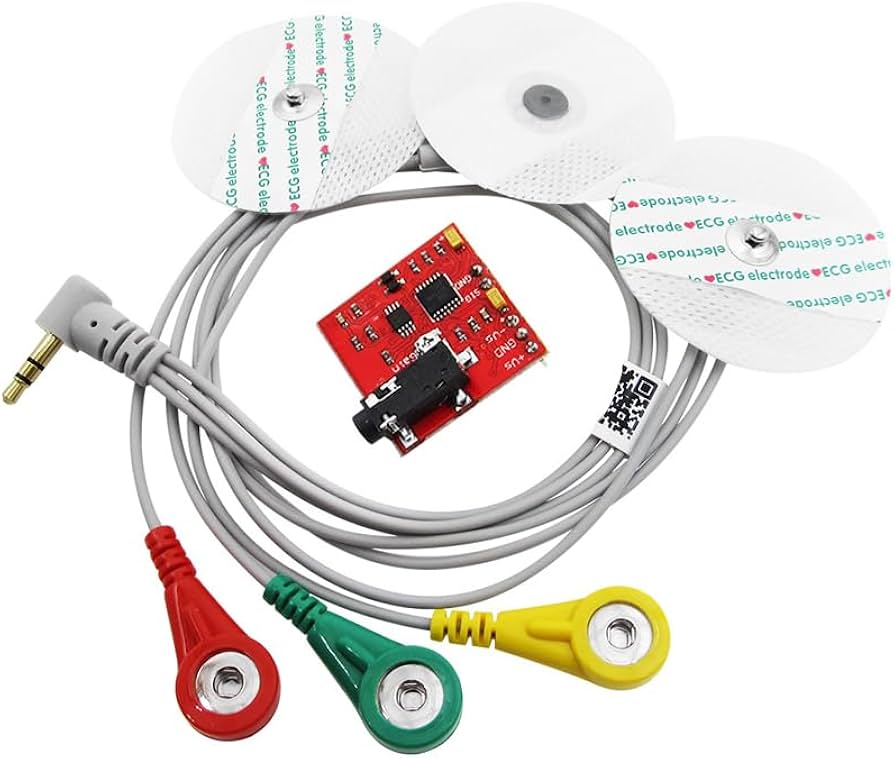

EMG SENSOR

The EMG Muscle Sensor V3.0 measures, filters, rectifies, and amplifies the electrical activity of a muscle, producing an analog output (0V to Vs) readable by any microcontroller ADC. Includes cable and electrode pads. Adjustable gain for robust signal capture. Requires dual-supply power (±3.5V minimum, typically ±9V via two 9V batteries).

Warning: This sensor is NOT a medical device and is not intended for medical diagnosis or treatment. If underage, do not use without adult supervision.

Wiring:

• Black/Brown cable — Reference electrode (bony/inactive area e.g. elbow)
• Red cable — Mid-muscle electrode
• Blue cable — End-of-muscle electrode
• SIG — Connect to microcontroller analog input
• GND — Connect to microcontroller ground

Specifications:

• Operating Voltage: ±5V (±3.5V minimum)
• Output: Analog (0V to Vs)
• Electrode Pad Diameter: 52mm
• Cable Length: 2 feet (electrode cable), 1m (connecting cable)
• Connector: 3.5mm audio jack
• Dimensions: 33.5 × 26 × 12mm
• Weight: 40g

Applications:

• Muscle-controlled robotics and prosthetics
• Biofeedback and research projects
• Gesture and motion interfaces
