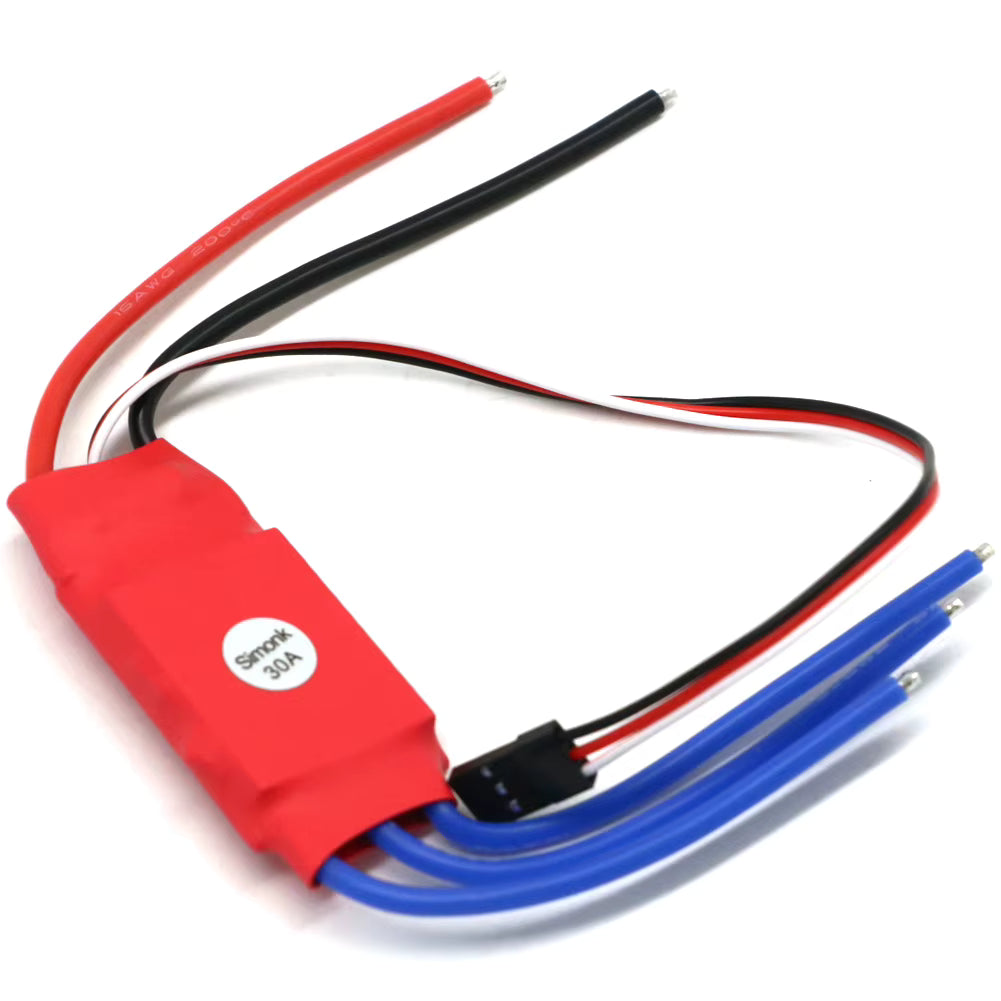

ESC 30A SIMONK RED

The SimonK 30A BLDC ESC is tuned specifically for quadcopters and multi-rotors, delivering faster and more precise motor speed control than standard ESCs. Drives motors up to 30A continuous. Runs on 2–3S LiPo batteries. Integrated 5V/2A BEC eliminates the need for a separate receiver battery. Includes reverse-polarity protection and 5V receiver line protection.

Warning: When using with an RC receiver, always switch off the ESC/motor power before switching off the remote control — failure to do so may result in the motor running at full throttle.

Features:

1. SimonK firmware for fast multi-rotor motor response
2. Continuous current: 30A
3. BEC output: 5V / 2A
4. Battery: 2–3S LiPo
5. Reverse-polarity protection and 5V receiver line protection
6. 3 start modes: Normal, Soft, Super-Soft
7. Programmable throttle range via standard RC remote
8. High-quality MOSFETs with heatsink

Recommended Motor:

• A2212 Brushless Motor (1000kV, 1400kV, or 2200kV)
