ESP32 CAM MODULE
Rs. 672.60
Need a larger quantity? Get a bulk quote.

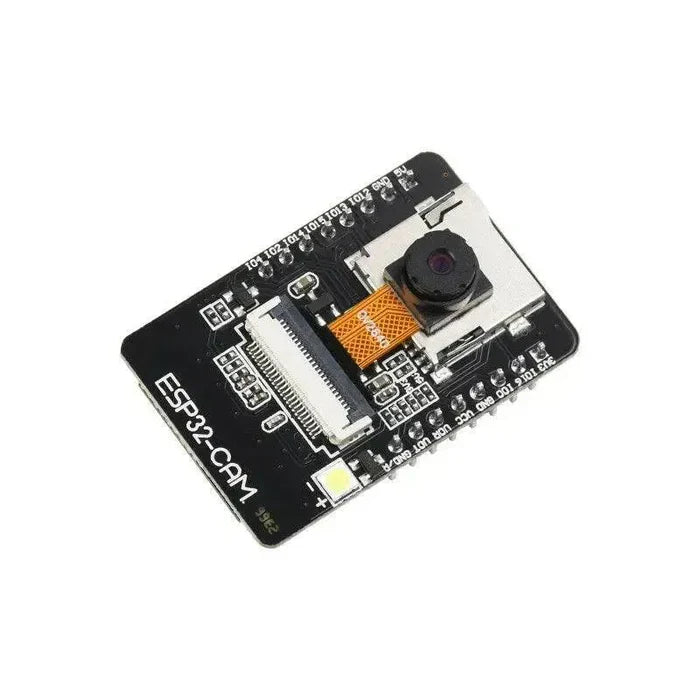

The ESP32-CAM is a compact Wi-Fi + Bluetooth camera module (40 × 27mm) with an OV3660 2MP camera, onboard LED flash, and microSD card slot (up to 4GB). Based on the ESP32-S with dual LX6 cores, 520KB SRAM, 4MB PSRAM, and 32Mbit SPI flash. Supports face recognition, image streaming over Wi-Fi, FOTA updates, and multiple sleep modes. DIP package for easy integration.
Specifications:
- CPU: Dual-core LX6, up to 240MHz
- Wi-Fi: 802.11 b/g/n (2.4GHz)
- Bluetooth: v4.2 BR/EDR + BLE
- RAM: 520KB SRAM + 4MB PSRAM
- Flash: 32Mbit SPI
- Camera: OV3660, JPEG/BMP/Grayscale output
- Storage: MicroSD up to 4GB
- Supply Voltage: 5V
- Operating Temperature: -20 to +85°C
- Dimensions: 40 × 27 × 12mm
Power Consumption:
- Normal (flash off): 180mA @ 5V
- Flash on (max): 310mA @ 5V
- Deep sleep: 6mA @ 5V
Applications:
- Face recognition and detection
- Wi-Fi video streaming and surveillance
- Home automation and IoT devices
- Industrial wireless monitoring
