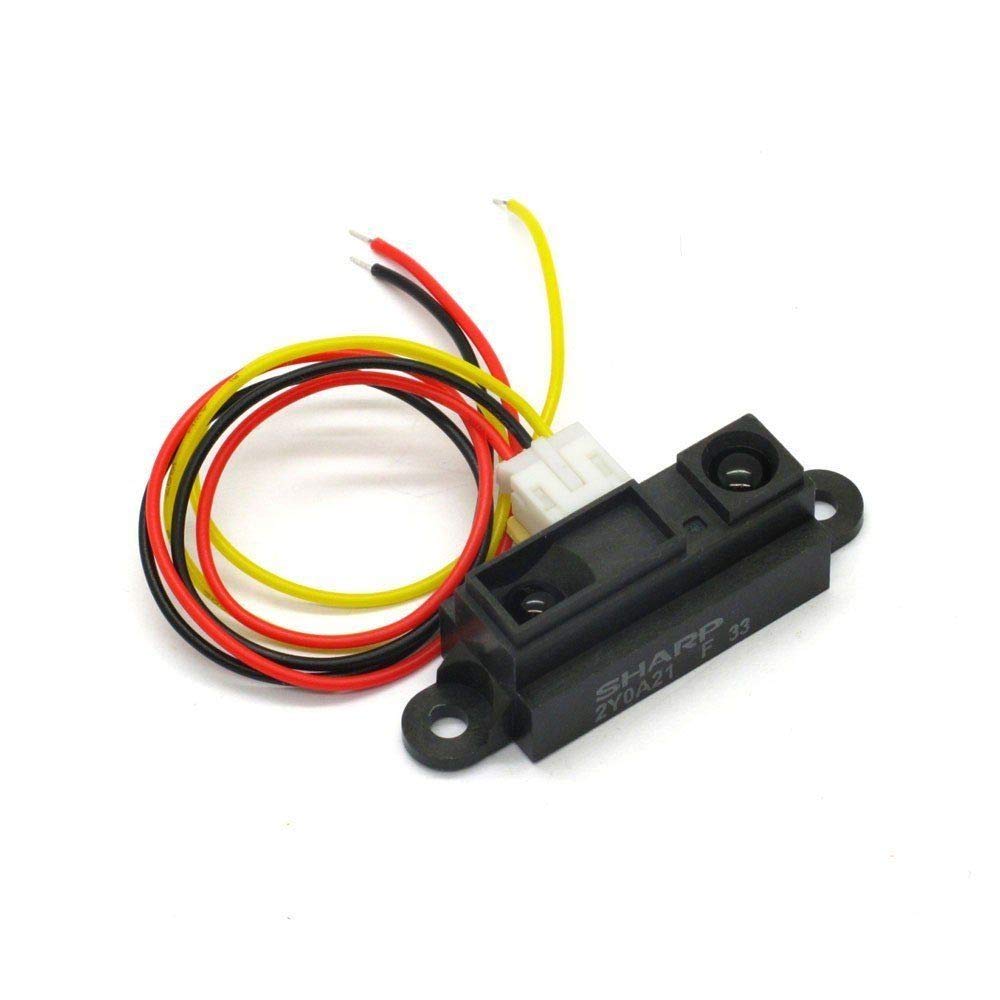

GP2YOA21 SHARP SENSOR

The Sharp GP2Y0A21YK0F is an IR analog distance sensor with a measurement range of 10–80cm. Bounces infrared off objects and returns an analog voltage inversely proportional to distance: ~3V at 10cm, ~0.4V at 80cm. Includes a 3-pin JST interface cable (300mm). For distances over 1m, use ultrasonic sensors instead.

Note: This sensor draws large, short current bursts. Place a 10µF or larger capacitor across VCC and GND close to the sensor to stabilise the supply line.

Wiring:

• Black — GND
• Red — 5V
• White — Analog output

Specifications:

• Model: GP2Y0A21YK0F
• Range: 10–80cm (0.1–0.8m)
• Output: Analog voltage (3V @ 10cm, 0.4V @ 80cm)
• Supply Voltage: 4.5–5.5V
• Connector: 3-pin JST (300mm cable)
• Mounting holes: 3mm dia, 37mm apart

Applications:

• Obstacle detection and avoidance robots
• Short-range proximity sensing
• Object detection for automation projects
