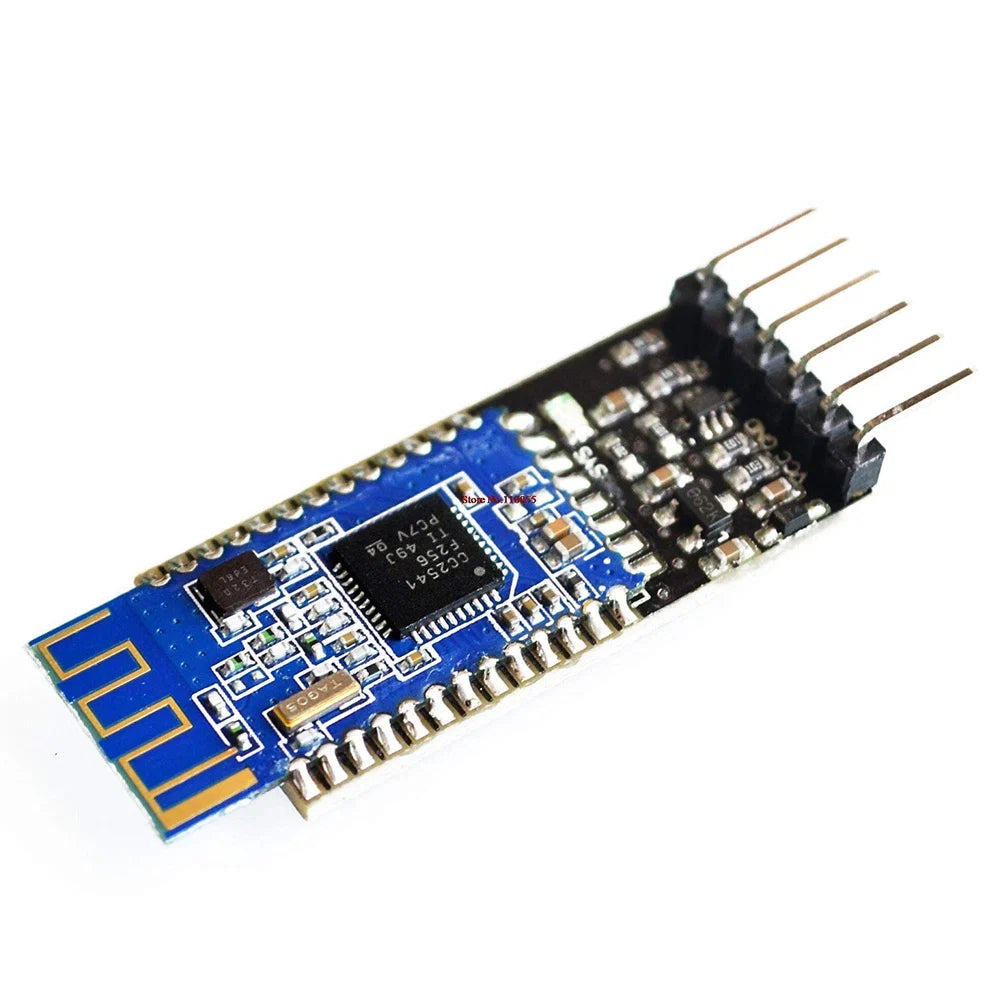

HM10 MODULE
Rs. 299.20
The HM-10 is a Bluetooth 4.0 BLE module based on the TI CC2541 chip. Supports transparent UART serial communication with BLE-capable devices (Android, iOS). Configurable as Master or Slave via AT commands. Onboard voltage regulator accepts 5V input (converts to 3.3V internally). Range up to 60m. Features 2-channel 14-bit ADC, 4-channel PWM output, and ultra-low power standby mode.
Pin Description:
- VCC — 5V supply
- GND — Ground
- TXD — Serial transmit
- RXD — Serial receive
- STATE — Internal LED status (leave unconnected)
- BRK — Break connection (leave unconnected)
Specifications:
- Chip: TI CC2541
- Bluetooth: v4.0 BLE
- Frequency: 2.4GHz ISM band (GFSK)
- TX Power: ≤4dBm
- Sensitivity: ≤-84dBm @ 0.1% BER
- Range: Up to 60m
- Default Baud Rate: 9600bps
- Supply Voltage: 5V
- ADC: 2-channel, 14-bit
- PWM: 4-channel, 120Hz
- Antenna: Built-in PCB antenna
Applications:
- BLE wireless serial communication
- iOS and Android app connectivity
- IoT sensor data transmission
- Remote control and monitoring
