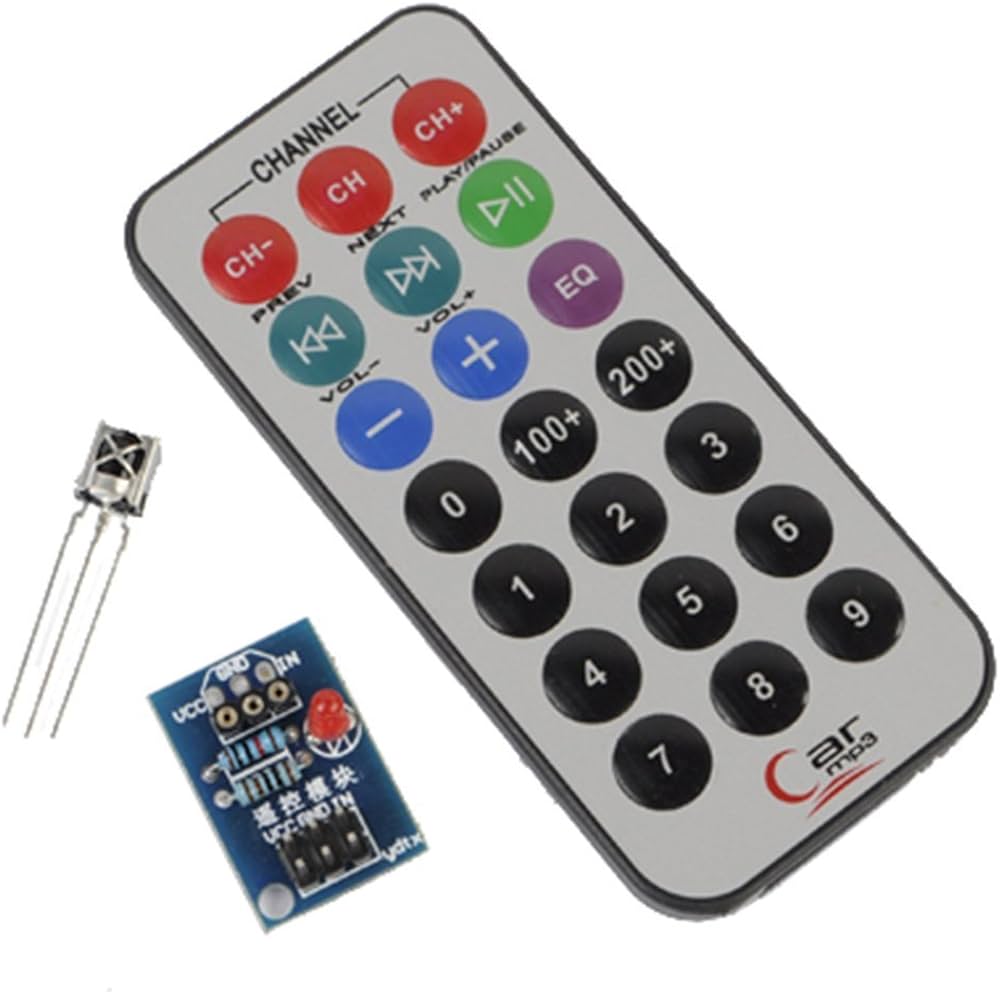

IR REMOTE WITH TSOP BOARD
Rs. 56.64
Need a larger quantity? Get a bulk quote.
The TSOP1738 IR Receiver module includes an IR remote control and a TSOP1738 receiver board. The TSOP1738 integrates a PIN photodiode and preamplifier with an internal 38kHz PCM bandpass filter. Outputs a demodulated digital signal directly compatible with TTL/CMOS microcontrollers. High immunity to ambient light and electrical interference. Supports data rates up to 2400bps.
Specifications:
- Carrier Frequency: 38kHz
- Supply Voltage: 5V
- Power Consumption: 0.4–1.0mA
- Detection Angle: 90°
- Operating Temperature: -25 to +85°C
- Dimensions: 12.5 × 10 × 5.8mm
- Output: Active LOW demodulated signal (TTL/CMOS compatible)
- Max Data Rate: 2400bps
- Burst Length: 10 cycles/burst
Applications:
- Arduino/MCU IR remote control decoding
- Home automation IR input
- Robotics wireless control
- IR-based object detection
