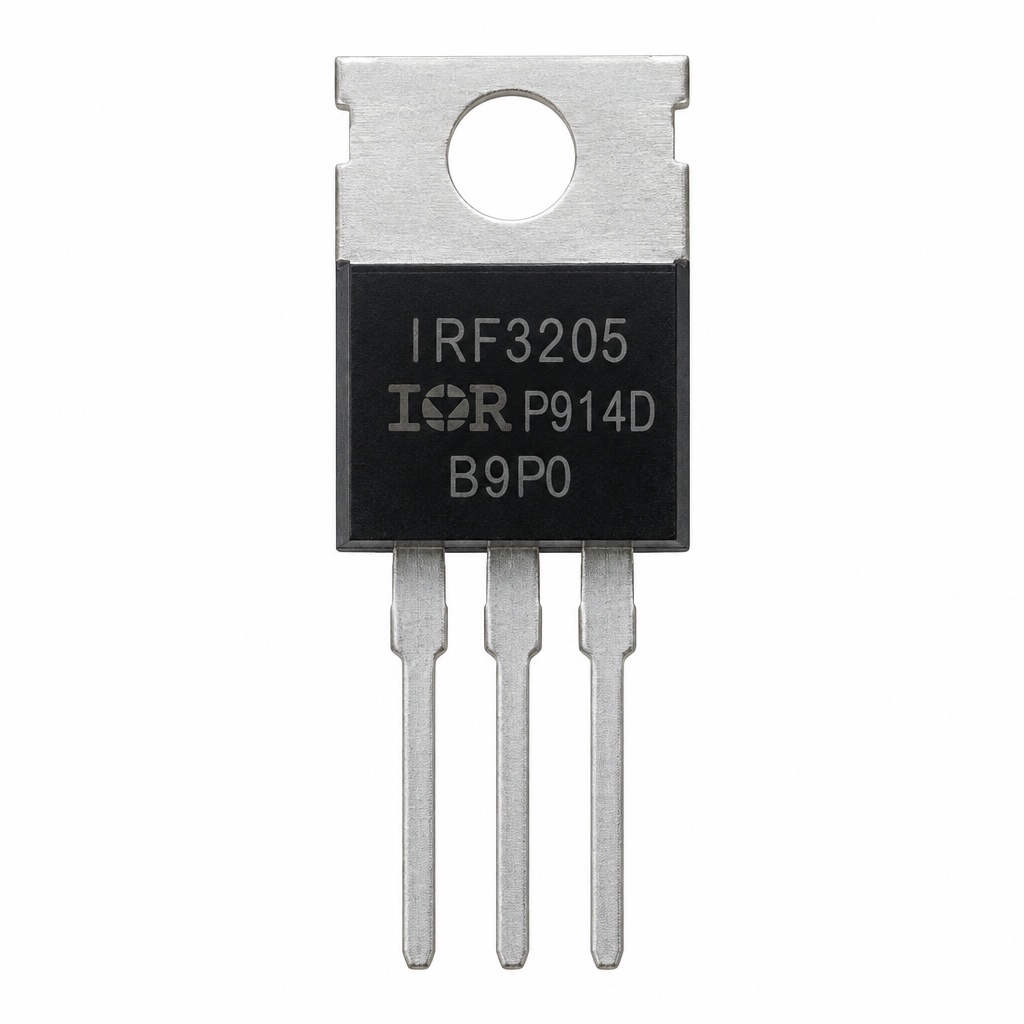

IRF3205 N-Channel Power MOSFET 55V 110A (Min 5 Pcs)

The IRF3205 is an ultra-low on-resistance N-channel power MOSFET in TO-220 package. With 110A continuous drain current and only 8mΩ RDS(on), it's ideal for high-current switching in automotive and power electronics. Sold in a minimum of 5 pieces.

Specifications

• Type: N-Channel Power MOSFET
• Drain-Source Voltage (VDS): 55V
• Continuous Drain Current (ID): 110A
• On-Resistance (RDS(on)): 8mΩ (typical)
• Gate Threshold Voltage (VGS(th)): 2V to 4V
• Package: TO-220

Applications

High-current DC motor driver, automotive power switching, battery management systems, synchronous rectifier, electric bike/scooter controller, high-current PWM switching.
