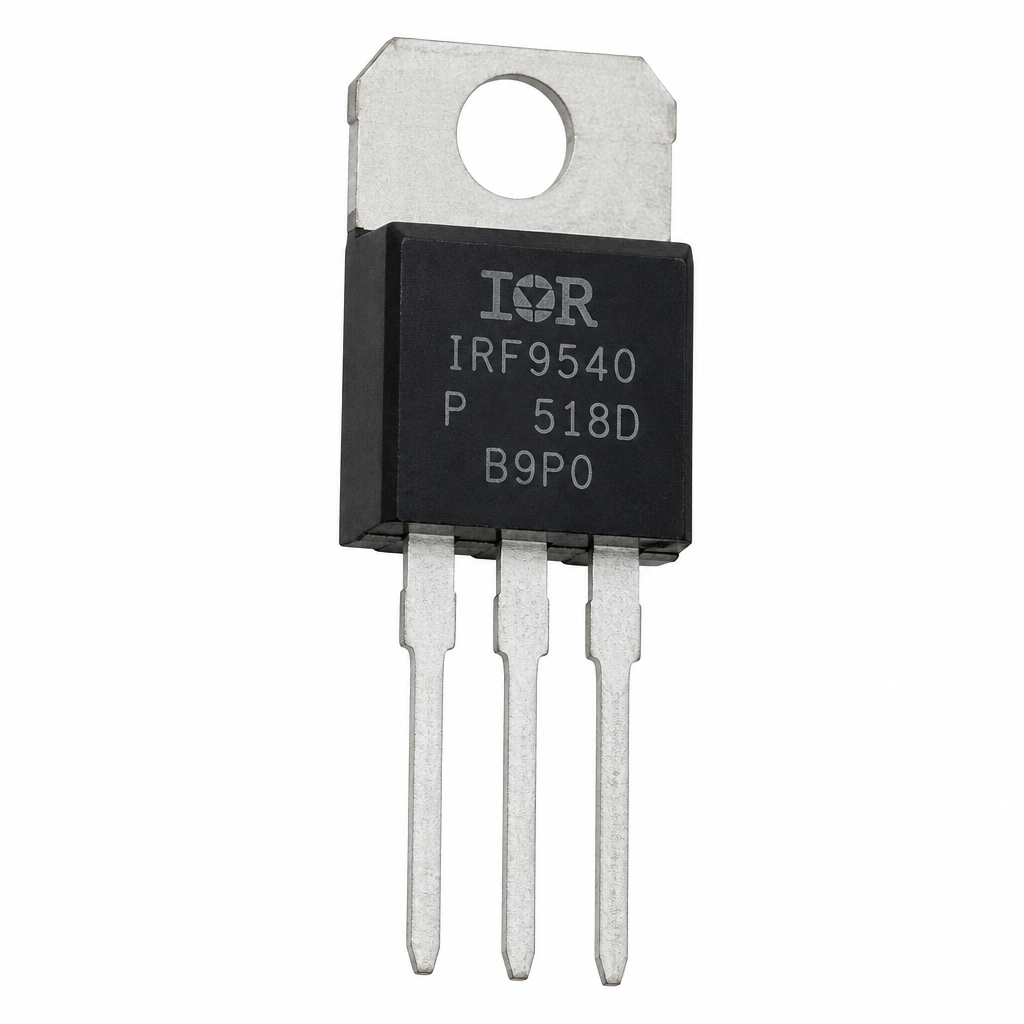

IRF9540 P-Channel Power MOSFET (Min 5 Pcs)
Rs. 20.06
Skip to product information
IRF9540 P-Channel Power MOSFET (Min 5 Pcs)
Rs. 20.06
Need a larger quantity? Get a bulk quote.
The IRF9540 is a high-current P-channel power MOSFET in TO-220 package. Complements the IRF540 in push-pull and H-bridge configurations. Ideal for high-side switching applications. Sold in a minimum of 5 pieces.
Specifications
- Type: P-Channel Power MOSFET
- Drain-Source Voltage (VDS): -100V
- Continuous Drain Current (ID): -19A
- On-Resistance (RDS(on)): 200mΩ (typical)
- Gate Threshold Voltage (VGS(th)): -2V to -4V
- Package: TO-220
Applications
H-bridge motor driver (paired with IRF540), high-side load switching, complementary push-pull amplifier, DC-DC buck converter, battery power switching, reverse polarity protection.
