KK 2.1.5
Rs. 4,366.00
Skip to product information
KK 2.1.5
Rs. 4,366.00
Need a larger quantity? Get a bulk quote.

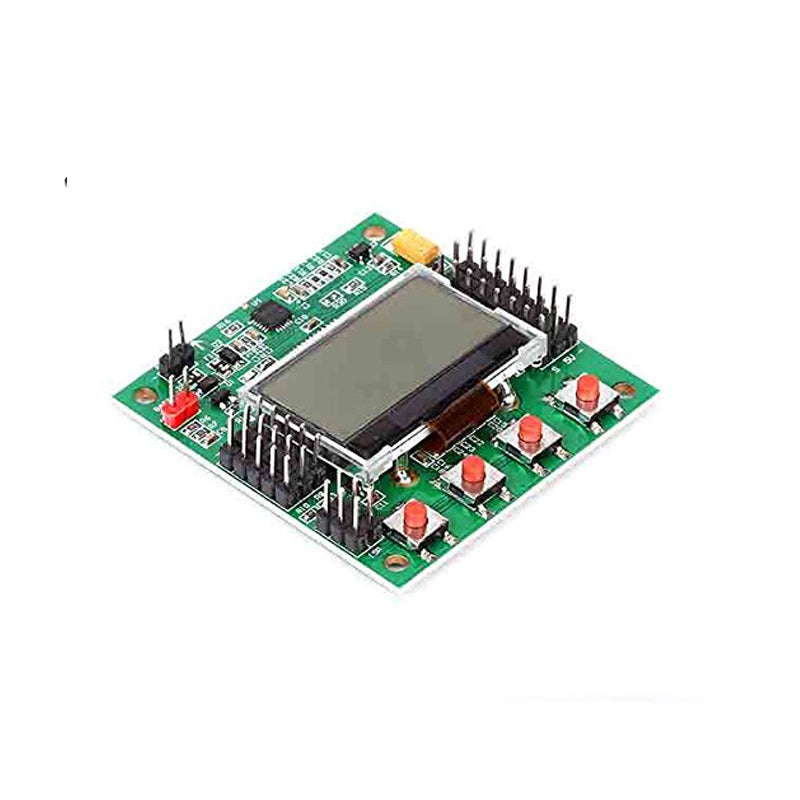

The KK 2.1.5 is a multi-rotor flight controller board featuring the InvenSense MPU-6050 6-axis IMU (accelerometer + gyroscope) and Atmel ATmega644PA 8-bit AVR MCU with 64KB flash. Onboard LCD screen for easy configuration without a PC. Supports auto-level and a wide range of multirotor frame types via pre-installed firmware v1.6. Includes piezo buzzer for audio alerts.
Key Features:
- IMU: MPU-6050 (6-axis accel + gyro)
- MCU: Atmel ATmega644PA (64KB flash)
- Onboard LCD for menu-driven setup
- Auto-level function
- Standard 6-pin AVR programming interface
- Piezo buzzer for arm/disarm alerts
- Receiver input: 1520µs PWM (5 channels)
Supported Frame Types (Firmware v1.6):
- Dualcopter, Tricopter, Quadcopter (+/X), Y6
- Hexcopter (+/X), Octocopter (+/X), X8, H8, H6, V8, V6
- Flying Wing, Singlecopter (2M2S / 1M4S)
- Custom mix via Mixer Editor (up to 8 motors/servos)
Applications:
- DIY drone and multirotor builds
- Learning flight controller and IMU concepts
- FPV racing and aerial photography platforms
