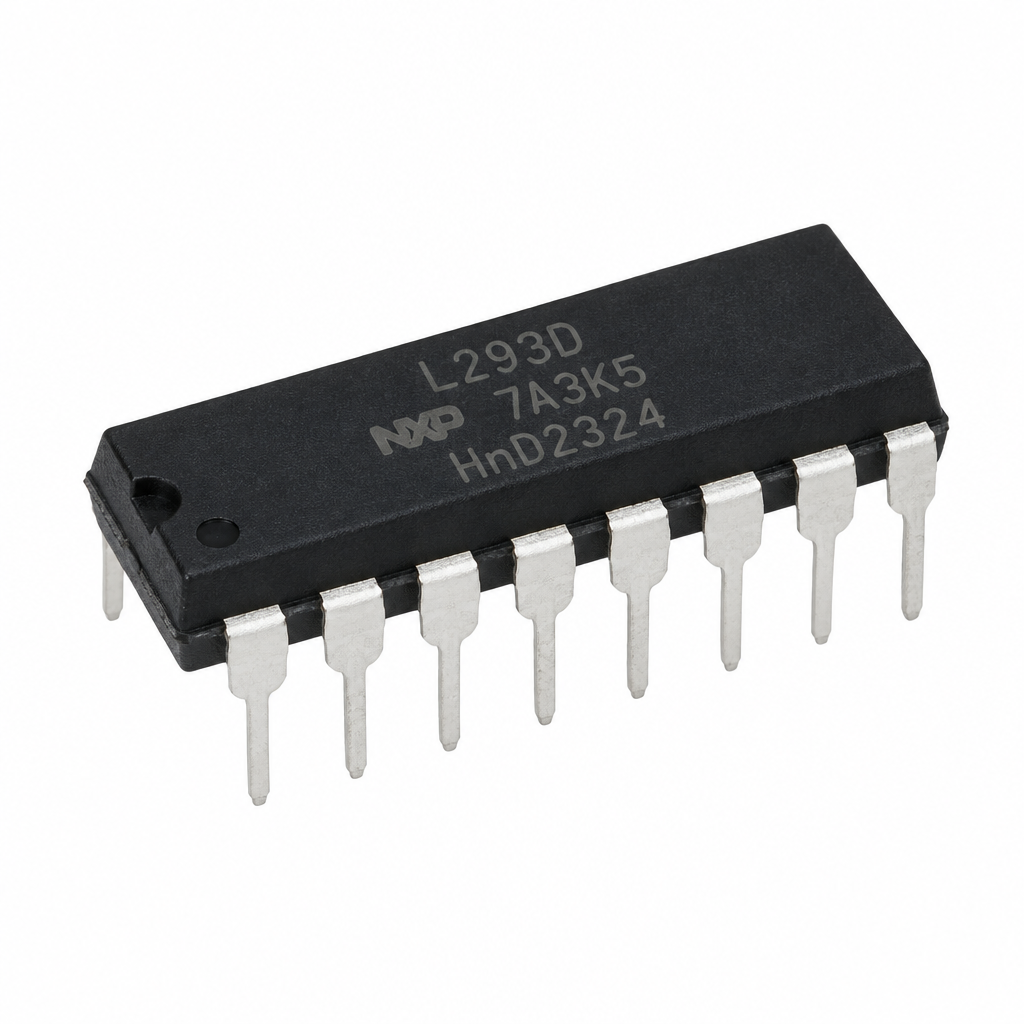

L293D Dual H-Bridge Motor Driver IC DIP-16 (Min 5 Pcs)
Rs. 23.60
Need a larger quantity? Get a bulk quote.
The L293D is the most widely used dual H-bridge motor driver IC in DIP-16 package. Drives two DC motors or one stepper motor with built-in flyback protection diodes — the classic IC for robotics, Arduino motor shields, and DC motor control projects. Sold in a minimum of 5 pieces.
Specifications
- Type: Dual H-Bridge Motor Driver
- Motor Supply Voltage (VS): 4.5V to 36V
- Logic Supply Voltage (VSS): 4.5V to 7V
- Output Current (per channel): 600mA continuous, 1.2A peak
- Channels: 2 (drives 2 DC motors or 1 bipolar stepper)
- Flyback Diodes: Built-in
- Enable Pins: Yes (per channel, supports PWM speed control)
- Package: DIP-16
Applications
DC motor direction and speed control, bipolar stepper motor driver, Arduino motor shield core IC, robotics chassis driver, conveyor belt control, pan-tilt mechanism, RC car motor driver.
