LCD 20X4 GREEN

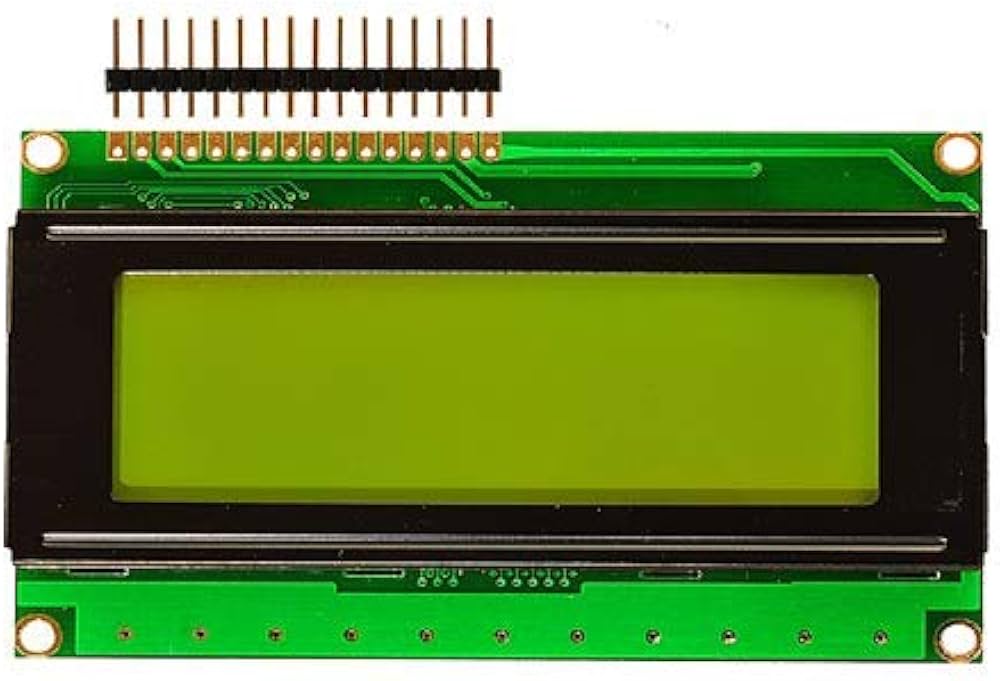

The 20×4 Green Backlight LCD is a 20-character × 4-line alphanumeric character LCD with ST7066-compatible controller. Supports 4-bit and 8-bit parallel interface. 5×7 dot matrix with cursor. Built-in CGRAM for up to 8 user-defined characters. Compatible with Arduino, Raspberry Pi, AVR, PIC, ARM, and 8051 MCUs.

Specifications:

• Format: 20 characters × 4 rows
• Controller: ST7066 (HD44780 compatible)
• Character matrix: 5×7 dots + cursor
• Backlight: Green LED
• Interface: 4-bit or 8-bit parallel
• Supply Voltage: 5V
• Module Size: 98 × 60 × 14mm
• Viewing Area: 76 × 26mm
• Operating Temperature: -20 to +70°C
• Storage Temperature: -30 to +80°C

Applications:

• Multi-line sensor and status displays
• Embedded system menus
• Industrial and medical instrument panels
• Arduino and MCU projects
