LM2596
Rs. 47.20
Need a larger quantity? Get a bulk quote.

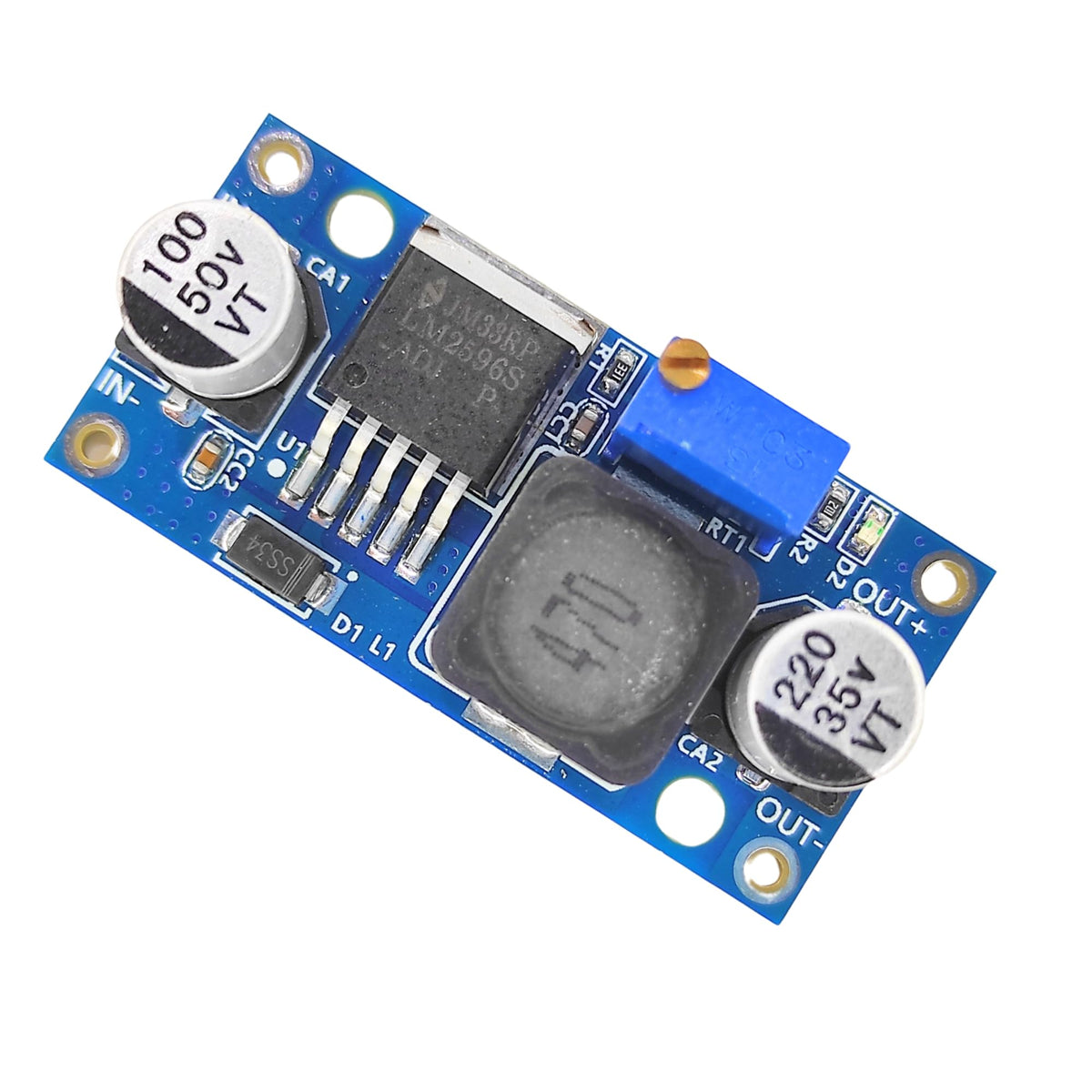

The LM2596 DC-DC Buck Converter is a non-isolated step-down switching regulator capable of 3A output with high efficiency. Output voltage is adjustable via onboard potentiometer (turn clockwise to increase, anticlockwise to decrease). 150kHz switching frequency allows compact filter components. Built-in short-circuit protection with self-recovery. Add a heatsink for loads above 2.5A or 10W output.
Specifications:
- IC: LM2596
- Input Voltage: 4–40V DC
- Output Voltage: 1.5–35V DC (adjustable)
- Rated Output Current: 2A
- Max Output Current: 3A (heatsink required)
- Switching Frequency: 150kHz
- Efficiency: up to ~92%
- Protection: Current limiting, short-circuit self-recovery
- PCB material: FR4
Applications:
- Voltage regulation for Arduino and MCU projects
- Battery-powered device power supply
- DC motor and LED driver power rail
- Lab bench adjustable power supply
