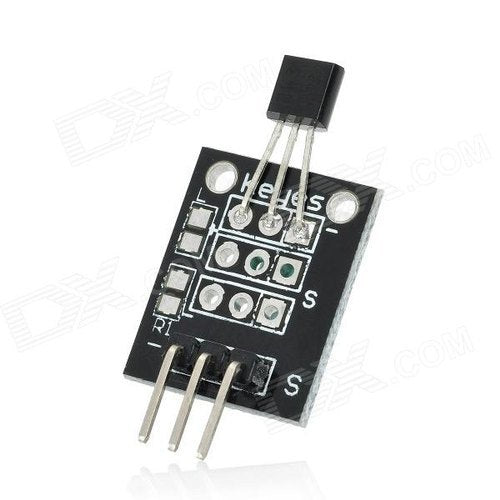

LM35Z MODULE
Rs. 94.40
Skip to product information
LM35Z MODULE
Rs. 94.40
Need a larger quantity? Get a bulk quote.
The LM35D Analog Temperature Sensor Module outputs an analog voltage directly proportional to temperature in Celsius (10mV/°C scale factor). No calibration required. Low self-heating (<0.1°C in still air). Connect the analog output directly to a microcontroller ADC pin or multimeter. Includes cable and 2.6mm mounting holes.
Pin Configuration:
- + — 4–30V power supply
- − — Ground
- OUT — Analog voltage output (10mV/°C)
Specifications:
- Sensor IC: LM35D
- Output: Analog (10mV/°C linear)
- Supply Voltage: 4–30V
- Accuracy: ±0.5°C at +25°C
- Operating Range: -55 to +150°C
- Current Draw: <60µA
- Output Impedance: 0.1Ω at 1mA
Applications:
- Ambient air temperature sensing
- Arduino and MCU temperature monitoring
- HVAC and industrial temperature measurement
- Weather station and IoT projects
