LM386 Low-Voltage Audio Power Amplifier IC DIP-8 (Min 5 Pcs)
Rs. 9.44
Skip to product information

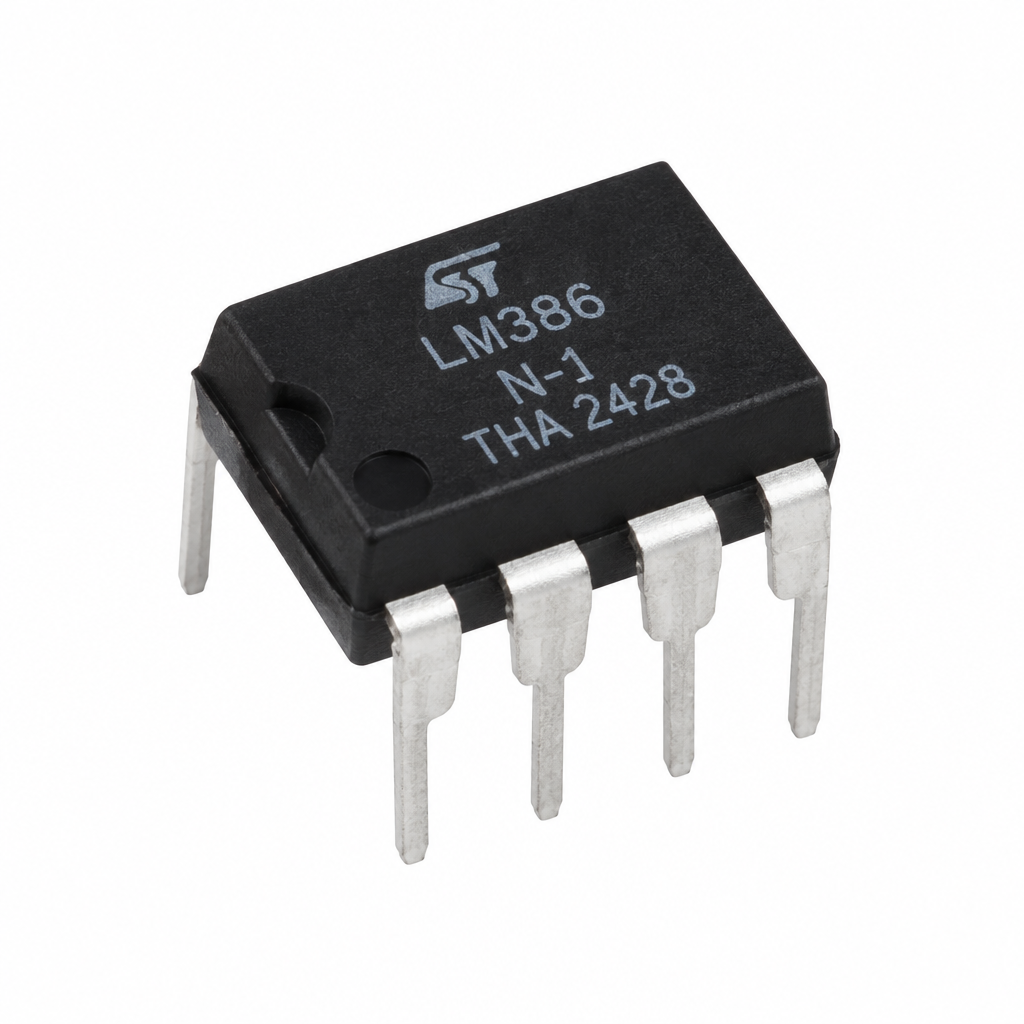

LM386 Low-Voltage Audio Power Amplifier IC DIP-8 (Min 5 Pcs)
Rs. 9.44
Need a larger quantity? Get a bulk quote.
The LM386 is a classic low-voltage audio power amplifier IC in DIP-8 package. Delivers up to 1W into an 8Ω speaker from a 5–12V supply — perfect for battery-powered radios, intercoms, and audio projects with Arduino or standalone circuits. Sold in a minimum of 5 pieces.
Specifications
- Type: Audio Power Amplifier
- Supply Voltage (VCC): 4V to 12V (LM386N-1)
- Output Power: 250mW @ 6V / 1W @ 12V into 8Ω
- Voltage Gain: 20 to 200 (adjustable with external capacitor)
- Input Impedance: 50kΩ
- Quiescent Current: 4mA
- Package: DIP-8
Applications
Battery-powered speaker amplifier, AM/FM radio audio stage, intercom, walkie-talkie audio output, ultrasonic driver, Arduino audio output, signal amplifier, small speaker driver.
