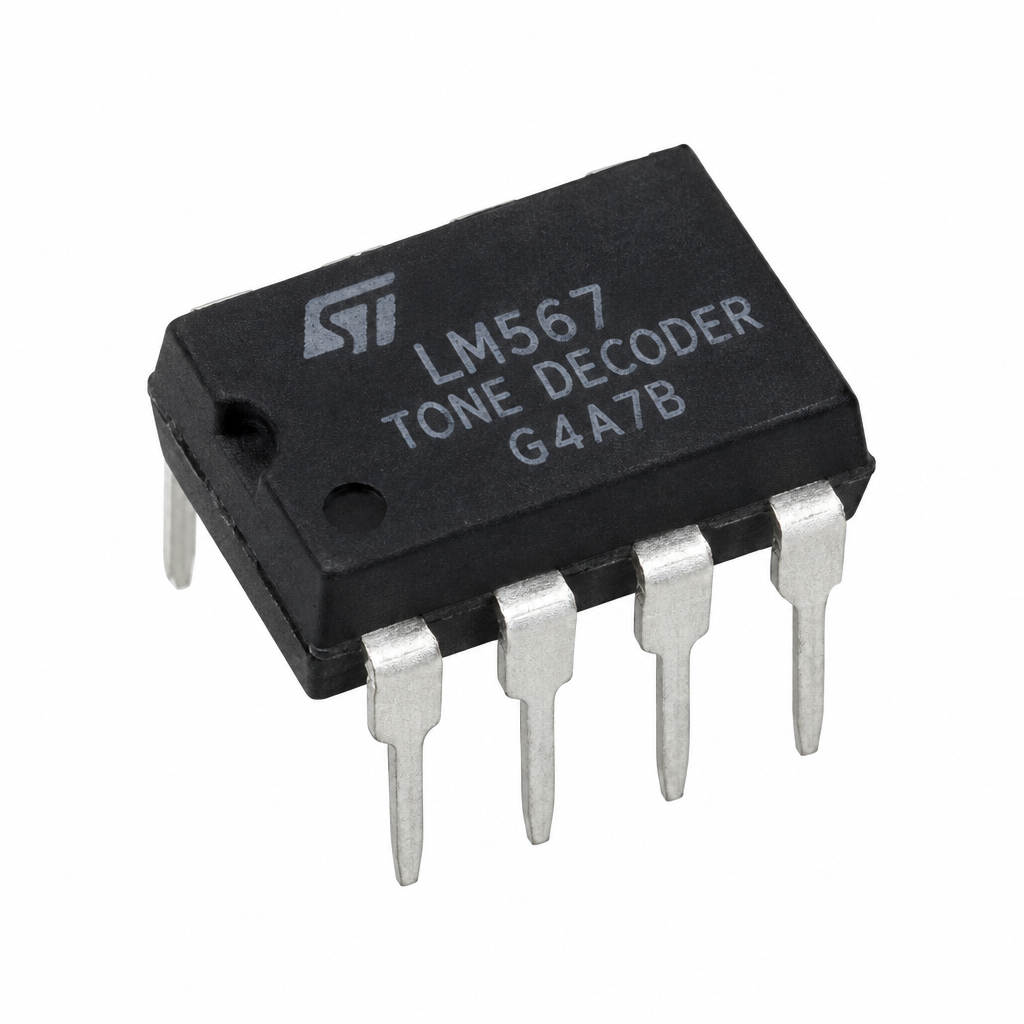

LM567 Tone Decoder / PLL IC (Min 5 Pcs)
Rs. 20.06
Need a larger quantity? Get a bulk quote.
The LM567 is a versatile tone decoder / phase-locked loop (PLL) IC in DIP-8 package. Detects a specific frequency tone and activates its output, making it ideal for frequency-selective communication and audio signaling. Sold in a minimum of 5 pieces.
Specifications
- Type: Tone Decoder / PLL
- Supply Voltage: 4.75V to 9V
- Detection Frequency: 0.01Hz to 500kHz (set by R & C)
- Bandwidth: Adjustable (14% typical)
- Output: Active-low, open-collector (sink 100mA)
- Frequency Stability: 0.2% per °C
- Package: DIP-8
Applications
DTMF tone detection, infrared remote receiver decoding, carrier-current communication, ultrasonic frequency detection, FSK demodulation, selective calling systems.
