LOAD CELL 10KG
Rs. 118.00
Need a larger quantity? Get a bulk quote.

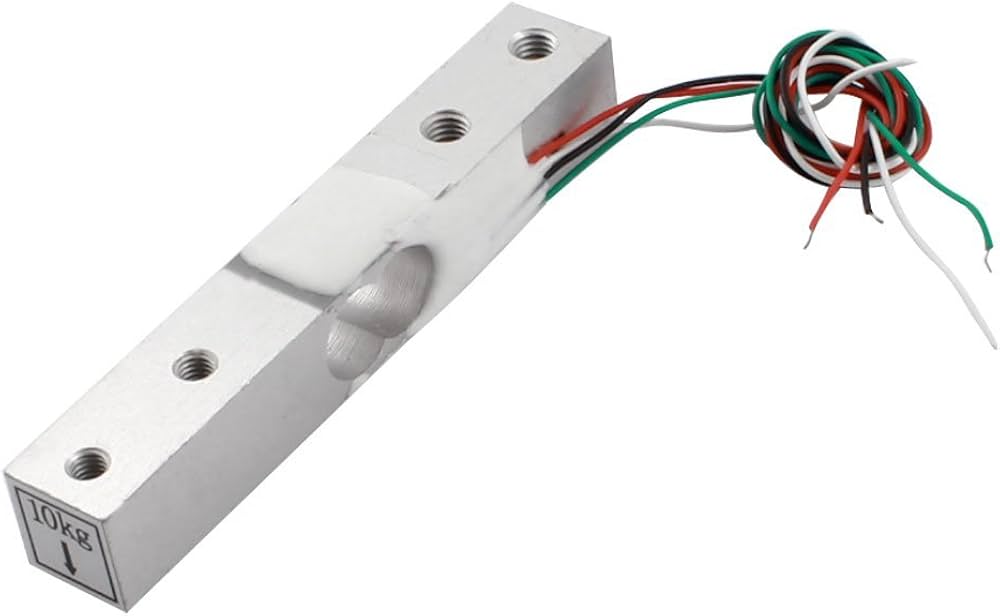

The 10kg Strain Gauge Load Cell is an aluminium single-point load cell that outputs a millivolt signal proportional to applied force. Requires a HX711 or similar instrumentation amplifier/ADC to interface with a microcontroller. Class C2 accuracy. 4-wire connection (Red +Ex, Black −Ex, Green +Sig, White −Sig).
Specifications:
- Capacity: 10kg
- Accuracy Class: C2
- Rated Output: 2.0 ± 0.15 mV/V
- Excitation Voltage: 10–15V recommended
- Input Resistance: 402 ± 6Ω
- Output Resistance: 350 ± 3Ω
- Insulation Resistance: >5000MΩ (<50V)
- Combined Error: <±0.030% RO
- Compensated Temperature: -10 to +40°C
- Operating Temperature: -35 to +80°C
- Safe Overload: 150% RO
- Ultimate Overload: 200% RO
- Material: Aluminium
- Cable: ø4.2 × 350mm
Wiring:
- Red — Excitation +
- Black — Excitation −
- Green — Signal +
- White — Signal −
Applications:
- Digital weighing scales and balances
- Parcel and postal scales
- Electronic platform scales
- Arduino/HX711 weight measurement projects
