LOAD CELL 1KG
Rs. 136.00

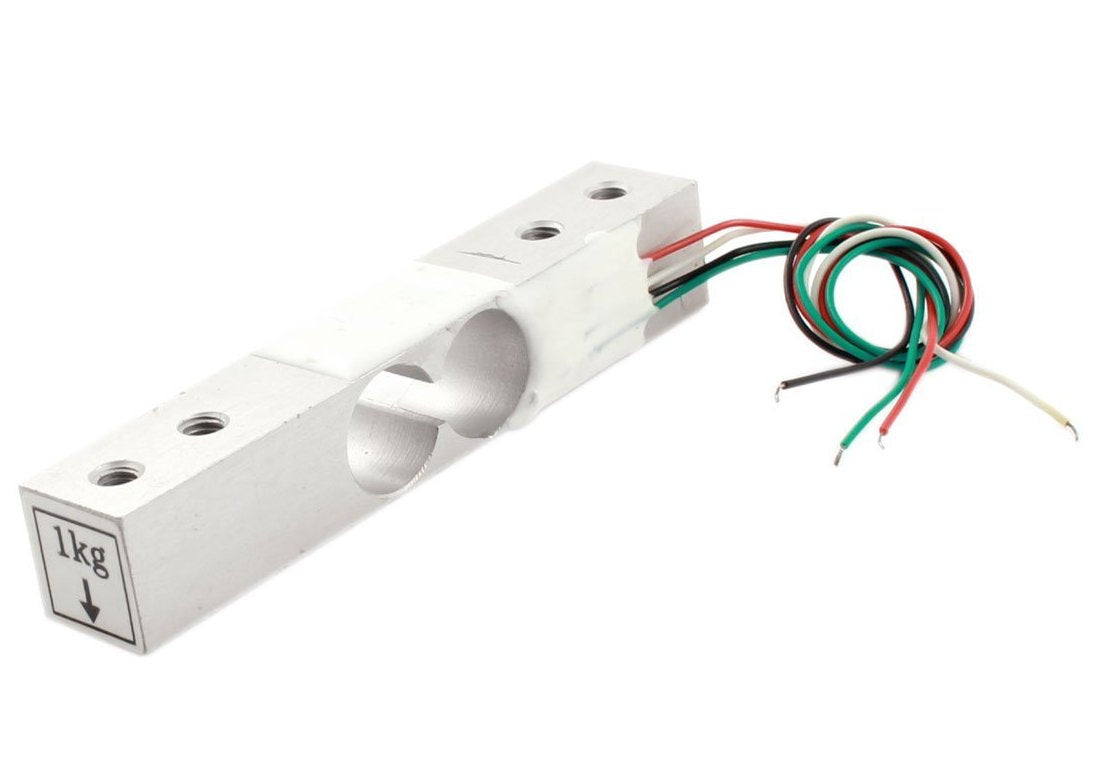

The YZC-131 1kg Strain Gauge Load Cell is an aluminium single-point sensor that outputs a millivolt signal proportional to applied force. Pair with an HX711 amplifier module for Arduino/MCU interfacing. Fix one end with screws; the other end is left floating for weight measurement. 4-wire connection.
Specifications:
- Model: YZC-131
- Capacity: 1kg
- Rated Output: 1.0 ± 0.1mV/V
- Non-linearity: ±0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.03% F.S
- Creep (5 min): 0.05% F.S
- Output Impedance: 1000 ± 10%Ω
- Insulation Resistance: >2000MΩ
- Excitation Voltage: 5–10V
- Operating Temperature: -20 to +65°C
- Material: Aluminium
- Dimensions: 75 × 12.6 × 12.6mm
- Cable Length: 18cm
Wiring (HX711 compatible):
- Red — E+ (Excitation +)
- Black — E− (Excitation −)
- Green — A+ (Signal +)
- White — A− (Signal −)
Applications:
- Digital kitchen and postal scales
- Arduino HX711 weight measurement projects
- Electronic balance and platform scales
