LOAD CELL 20KG
Rs. 118.00
Need a larger quantity? Get a bulk quote.

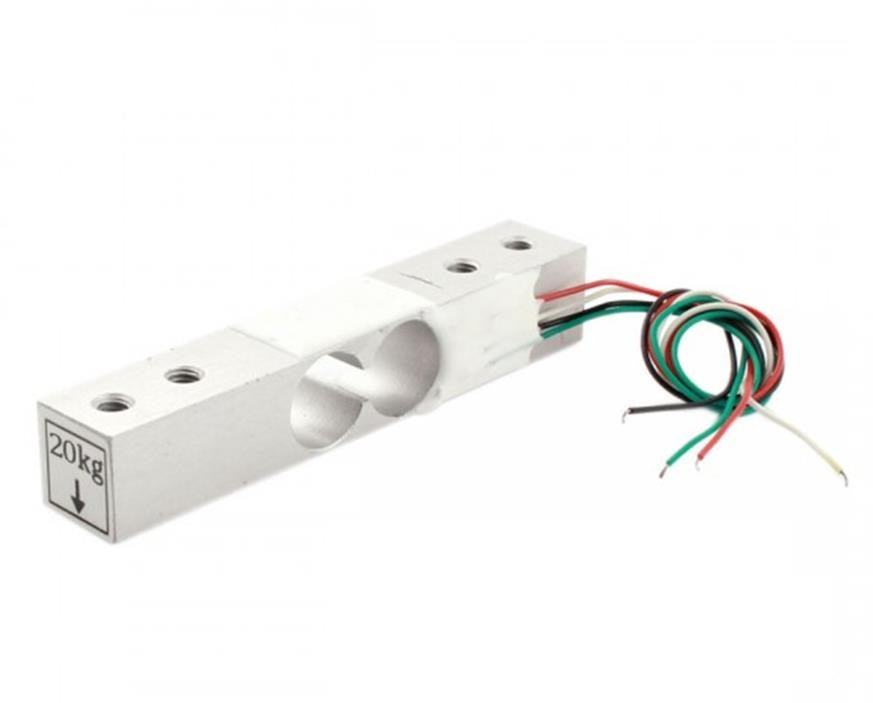

The YZC-133 20kg Strain Gauge Load Cell is an aluminium single-point sensor using a Wheatstone bridge of 4 strain gauges to convert force into a millivolt signal. Pair with an HX711 amplifier for Arduino/MCU interfacing. IP65 rated. Fix one end with screws; leave the other end floating for measurement. 4-wire connection.
Specifications:
- Capacity: 20kg
- Rated Output: 1.0 ± 0.1mV/V
- Non-linearity: ±0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.05% F.S
- Creep (30 min): 0.03% F.S
- Zero Balance: ±0.1mV/V
- Output Impedance: 1000 ± 10%Ω
- Insulation Resistance: >2000MΩ
- Excitation Voltage: 5–10V
- Operating Temperature: -20 to +65°C
- Protection: IP65
- Material: Aluminium
- Cable Length: 18cm
Wiring (HX711 compatible):
- Red — E+ (Excitation +)
- Black — E− (Excitation −)
- Green — A+ (Signal +)
- White — A− (Signal −)
Applications:
- Electronic platform and industrial scales
- Arduino HX711 weight measurement projects
- Parcel and postal weighing systems
