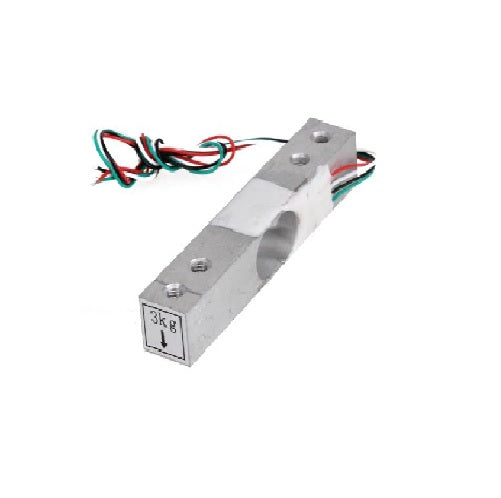

LOAD CELL 3KG
Rs. 136.00
The YZC-131 3kg Strain Gauge Load Cell is an aluminium single-point sensor using a Wheatstone bridge to convert force into a millivolt signal. Pair with an HX711 amplifier for Arduino/MCU interfacing (HX711 DAT → A1, CLK → A0). Fix one end with screws; leave the other end floating for measurement.
Specifications:
- Model: YZC-131
- Capacity: 3kg
- Rated Output: 1.0 ± 0.1mV/V
- Non-linearity: ±0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.03% F.S
- Creep (5 min): 0.05% F.S
- Zero Balance: ±0.1mV/V
- Output Impedance: 1000 ± 10%Ω
- Excitation Voltage: 5–10V
- Operating Temperature: -21 to +40°C
- Material: Aluminium
- Cable Length: 18cm
Wiring (HX711 compatible):
- Red — E+ (Excitation +)
- Black — E− (Excitation −)
- Green — A+ (Signal +)
- White — A− (Signal −)
Applications:
- Digital kitchen and postal scales
- Arduino HX711 weight measurement projects
- Electronic balance and platform scales
