LOAD CELL 5KG
Rs. 136.00

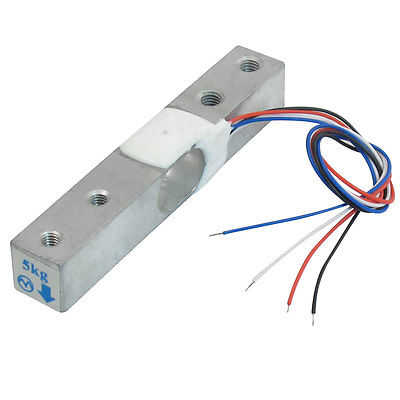

The YZC-131A 5kg Strain Gauge Load Cell is an aluminium single-point sensor using a Wheatstone bridge to convert force into a millivolt signal. Pair with an HX711 amplifier for Arduino/MCU interfacing. Fix one end with screws; leave the other end floating for measurement. 4-wire connection.
Specifications:
- Model: YZC-131A
- Capacity: 5kg
- Rated Output: 1.0 ± 0.1mV/V
- Non-linearity: ±0.03% F.S
- Hysteresis: 0.03% F.S
- Repeatability: 0.05% F.S
- Creep (5 min): 0.05% F.S
- Zero Balance: ±0.1mV/V
- Output Impedance: 1000 ± 10%Ω
- Insulation Resistance: >2000MΩ
- Excitation Voltage: 5–10V
- Operating Temperature: -21 to +40°C
- Material: Aluminium
- Dimensions: 75 × 13 × 13mm
- Cable Length: 18cm
- Weight: 29g
Wiring (HX711 compatible):
- Red — E+ (Excitation +)
- Black — E− (Excitation −)
- Green — A+ (Signal +)
- White — A− (Signal −)
Applications:
- Digital kitchen and postal scales
- Arduino HX711 weight measurement projects
- Electronic balance and platform scales
